Isuzu Dmax/Mazda BT50 110Ah Lithium Behind Seat DIY Dual Battery Kit

Original price $3,635.00 - Original price $3,928.00
Original price
$3,635.00
$3,635.00 - $3,928.00
Current price $3,635.00

Isuzu Dmax/Mazda BT50 100Ah Lithium Behind Seat DIY Dual Battery Kit

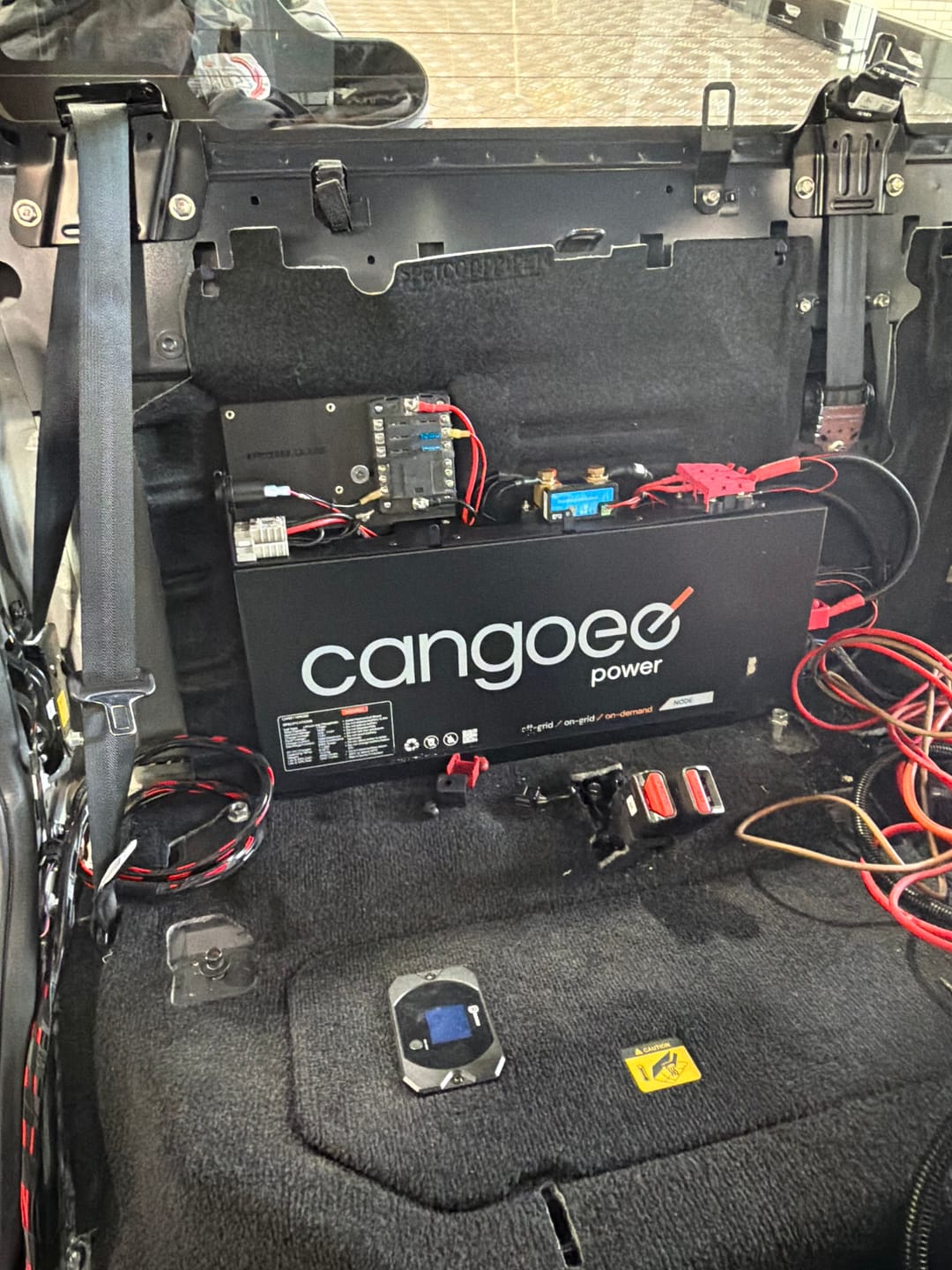

We have engineered a complete dual battery system that can fit behind the rear seat of your Isuzu Dmax or Mazda BT50.

Installation utilising OE mounting points, this DIY kit has been tested on the following vehicles :

  • Isuzu D-max - MY21 2021 > Onwards
  • Mazda BT-50 - MY21  2021 > Onwards

This is the ultimate solution for Utes and Dual Cab vehicles that can’t fit a battery under the bonnet or those who don't want a battery box taking up valuable tray space.

Total Dimensions:

  • Height: 41.5cm
  • Length: 67cm
  • Depth: 8.5cm

What's included

  • Cangoee 110Ah Lithium Battery
  • In-Built 20amp DC2DC Charger
  • Victorn Energy Smartshunt 500A/50mV
  • Victron Energy Smart Solar Controller 75/15
  • 6 Way Fuse Box
  • Vehicle Input Harness
  • Instructions
  • Outputs Behind Seat
    • Grey Anderson Plug
    • 12v Power Socket/Cig Socket
  • Input Behind Seat
    • Red Anderson Plug for Solar Input
  • PLUS you can add on a socket configuration for outlets in the rear of your ute
    • Socket Box or Dual Sockets of your choice with Rear Harness so you can mount it in the tub or canopy on your ute
  • Simultaneous charging – DC/DC and solar

Battery

Cangoee Lithium Battery 12V 110Ah Short Power Bank

  • Capacity: 110Ah robust M6 prismatic lithium cells.
  • Internal BMS protection manages both over current and low voltage disconnect
  • 5 Year Warranty
  • Internal 100A BMS
  • Rapid 100A charge rate
  • Discharge Current: 100A max cont. 200A surge
  • Twice the capacity of AGM / SLA batteries 50% lighter than other systems
  • Slim form factor in multiple configurations designed for parallel connection.
  • Inverter suitable power supply stud
  • 300A rated battery connectors
  • Weight: 13kg
  • Size L: 670mm. H: 264mm. D: 50mm
  • Life at 80% DOD: 2000 cycles
  • Life at 50% DOD: 5000 cycles
  • Operating Temp: 0-45degrees

      The dimensions for all socket box configurations are 195mm L x 110 mm H x 60mm D.

      DOWNLOAD INSTRUCTIONS HERE: BT-50 & D-MAX Installation Instructions

      Dual Sockets:

      Dual Sockets Option 1- 2x 12V Sockets

      Dual Sockets Option 2- 1x 12V Socket & 1x Dual USB

      Dual Sockets Option 3-1x 12V Socket &1x Voltmeter

      Socket Box:

      Socket Box Option 1- 1x Anderson Plug, 2x 12V Sockets, 1x Voltmeter, 1x Dual USB

      Socket Box Option 2- 1x Anderson Plug, 1x 12V Socket, 1x Engel Style Socket, 1x Voltmeter, 1x Dual USB

      Socket Box Option 3- 1x Anderson Plug, 1x 12V Socket, 1x Merit Style Socket, 1x Voltmeter, 1x Dual USB

      Socket Box Option 4- 2x Anderson Plug, 2x 12V Socket, 1x Voltmeter, 1x Dual USB

      Socket Box Option 5- 1x Anderson Plug,  1x Red Anderson Plug for Solar Input,  2x 12V Socket, 1x Voltmeter, 1x Dual USB

      The dimensions for all socket box configurations are 195mm L x 110 mm H x 60mm D.

      Wiring harness is constructed of
      8B&s Automotive Twin Core insulated cabling

      60amp Midi Fuse

      250amp rated Midi Fuse Holder

      3mm Single Automotive cabling for ignition switch with Piggy Back fuse adapter to suit.

      Rear Harness

      6mm Twin Core Automotive cabling to go to the rear of the vehicle.

      THESE FEEDS ARE BOTH POSITIVE IF YOU OPT FOR A SOCKET BOX

      INSTALL ENQUIRY

      Need this item installed?

      Book your install with our team today by either:

      Filling out a booking request on our Contact Page

      Or give us a call on (07) 5479 6652

      IMPORTANT SHIPPING INFORMATION

      As each kit is custom built it may take us some time to process and dispatch your order.

      Please allow 2 weeks for estimated dispatch time. Shipping can take 1-2 weeks depending on your location and postal service.

      This kit is classified as dangerous goods, because of this it is common for it to be held for 3-4 days on average for inspection during the shipping process. If your kit still hasn't arrived after 2 weeks from shipment date on tracking, please don’t hesitate to contact us.

      If you need your kit within a particular deadline, please contact us prior to ordering so we can ensure your items can arrive on time.
