Isuzu MU-X Passenger Side Socket Bank

A purpose-built socket bank for the Isuzu MU-X, designed to integrate seamlessly with your dual battery system and provide clean, reliable power for touring and everyday use.

🔑 Key Features

• Vehicle-specific design – custom fit for the MU-X, passenger side rear cup holder mount only
• Multiple configuration options – choose from three pre-wired layouts or a plate-only option
• Plug-and-play ready – pre-wired with 1.5 m tail terminated with a Red Anderson (solar input) and a Grey Anderson (12V output)
• Plate-only flexibility – supplied with your choice of sockets and Red/Grey Anderson cutouts (no pins provided)
• Touring durability – built tough to handle off-road conditions
• Easy installation – supplied pre-assembled with mounting hardware and instructions
• Australian tested – engineered and proven for local touring conditions

⚙️ Socket Bank Options

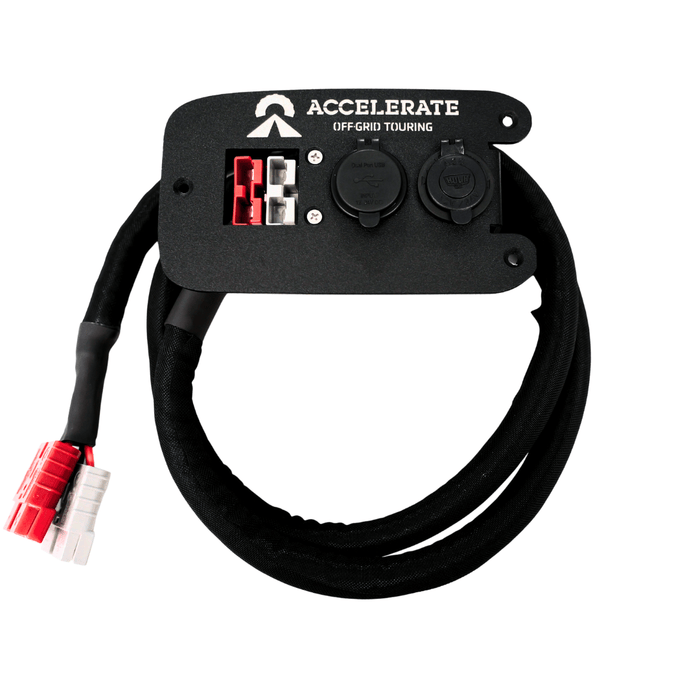

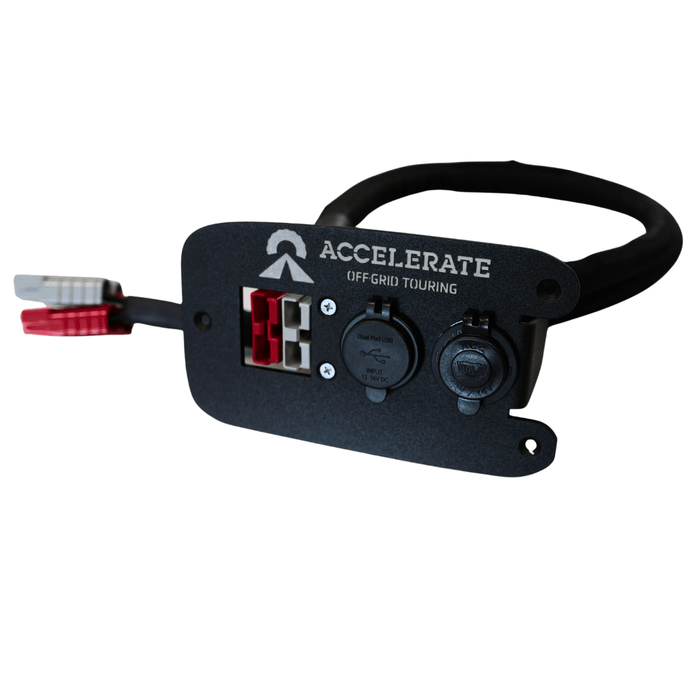

SB1: USB A/C + 12V Socket + 1 x Grey Anderson + 1 x Red Anderson Plugs

• USB A/C port for charging mobile devices
• Standard 12V socket for general use
• 1 x Grey Anderson plug for external accessories
• 1 x Red Anderson plug for solar input
• Ideal for everyday setups and light off-grid use

SB2: 2 × USB A/C  + 1 x Grey Anderson + 1 x Red Anderson Plugs

• Dual USB A/C ports for fast charging of multiple devices
• 1 x Grey Anderson plug for external accessories
• 1 x Red Anderson plug for solar input
• Streamlined option for USB-focused setups

SB3: USB A/C + Engel Socket + 1 x Grey Anderson + 1 x Red Anderson Plugs

• USB A/C port for small electronics
• Dedicated Engel fridge socket
• 1 x Grey Anderson plug for external accessories
• 1 x Red Anderson plug for solar input
• Perfect for extended off-grid touring where refrigeration is a priority

⚡ Wiring Harness Options

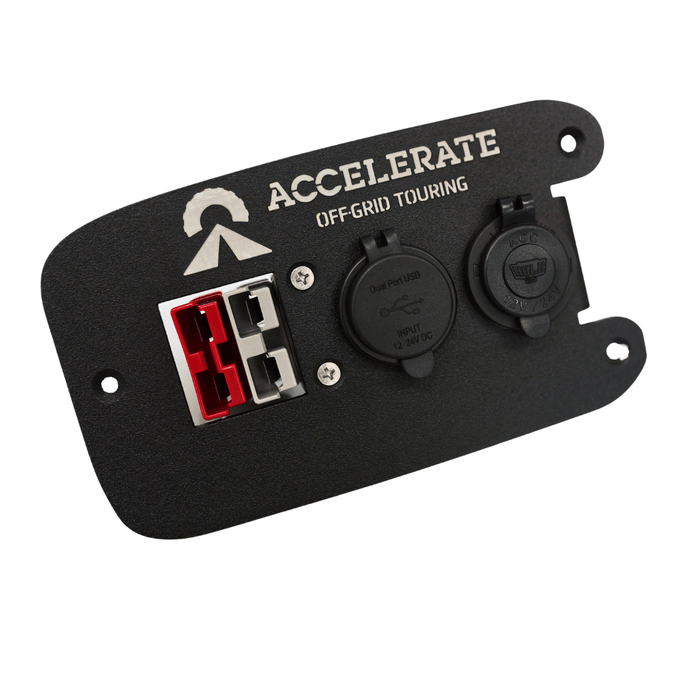

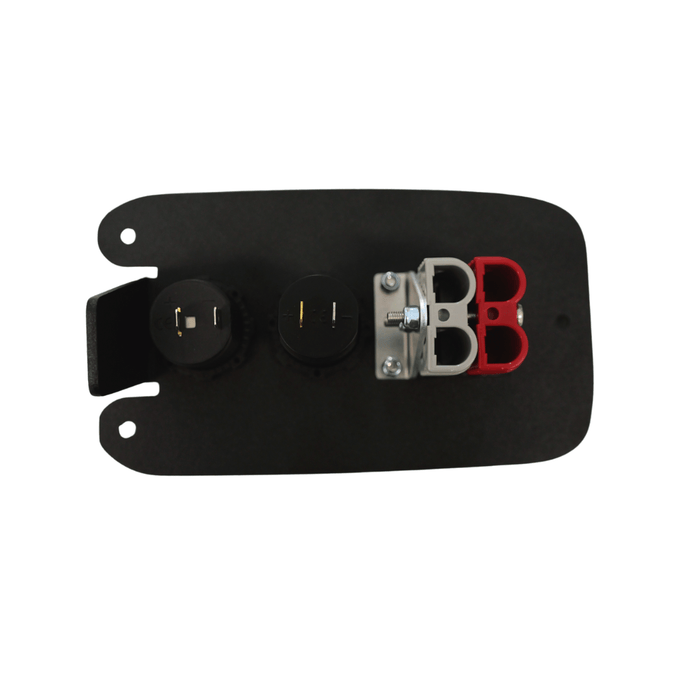

Plate-Only and Sockets Only

• Socket plate with your choice of socket cutouts
• Red and Grey Anderson plug cutouts included (no pins provided)
• Supplied with mounting screws × 3
• Flexible option for custom wiring setups

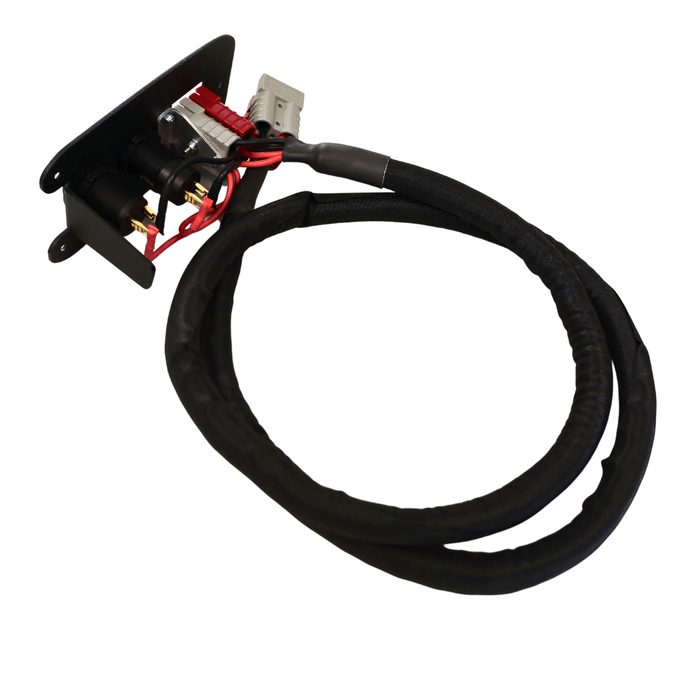

With 1.5 m Wiring Harness

• Pre-wired harness to connect directly to your dual battery system
• Terminated with Red Anderson (solar input) and Grey Anderson (12V output)
• 1.5 m length provides flexibility to plug into a dual battery system or a portable battery box

📏 Specifications

• Voltage: 12V DC
• Socket Types: USB A/C, 12V Socket, Engel Socket, Grey/Red Anderson
• Material: High-quality, durable plastic and metal components

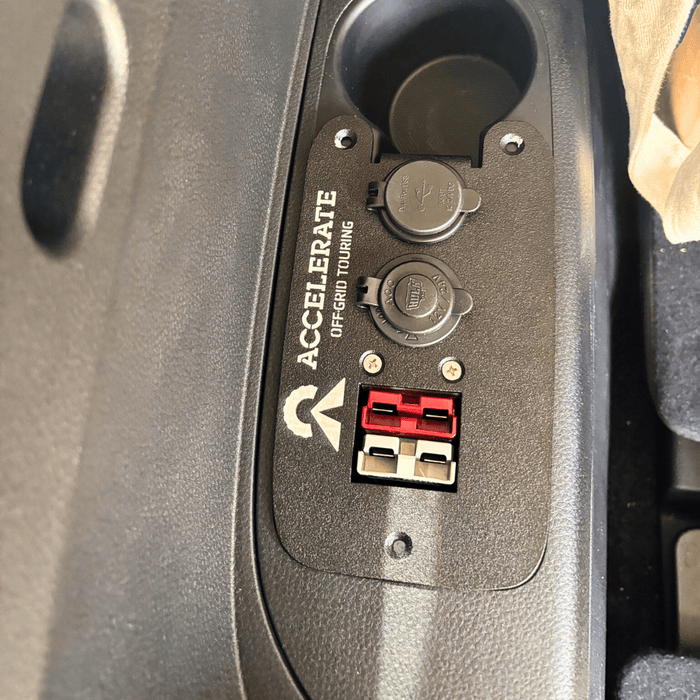

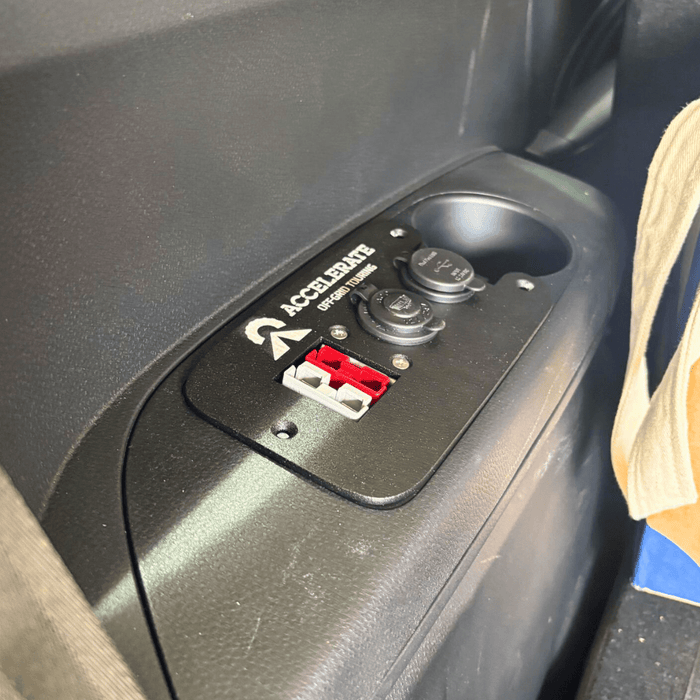

• Mounting: MU-X passenger side rear cup holder
• Installation: Plug-and-play (wired versions) or customer-supplied wiring (plate-only option)
• Plate Measurements: 180 mm (L) × 13 mm (W) x 70mm (D)

📦 What’s Included

• 1 × Pre-assembled Socket Bank (chosen configuration) or Plate-only option

• Pre-wired 1.5 m tail with Red Anderson (solar input) + Grey Anderson (12V output) (wired versions only)

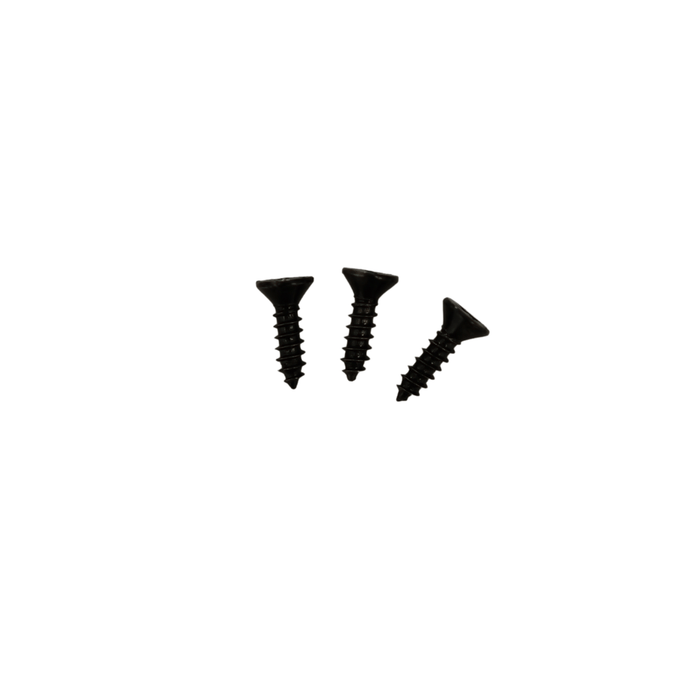

• Black Mounting screws × 3
