Compressor/Inverter Bracket - Prado 250 Series - Rear Quarter Panel

Take your Prado 250 Series to the next level with our custom-engineered Inverter Compressor Bracket, purpose-built to neatly mount an inverter and ARB Twin Air Compressor inside the rear passenger-side quarter panel.

Designed, laser-cut and powder-coated right here on the Sunshine Coast, this bracket utilises factory mounting points with no drilling or cutting required, maintaining a clean, OEM-style finish while unlocking serious off-grid functionality.

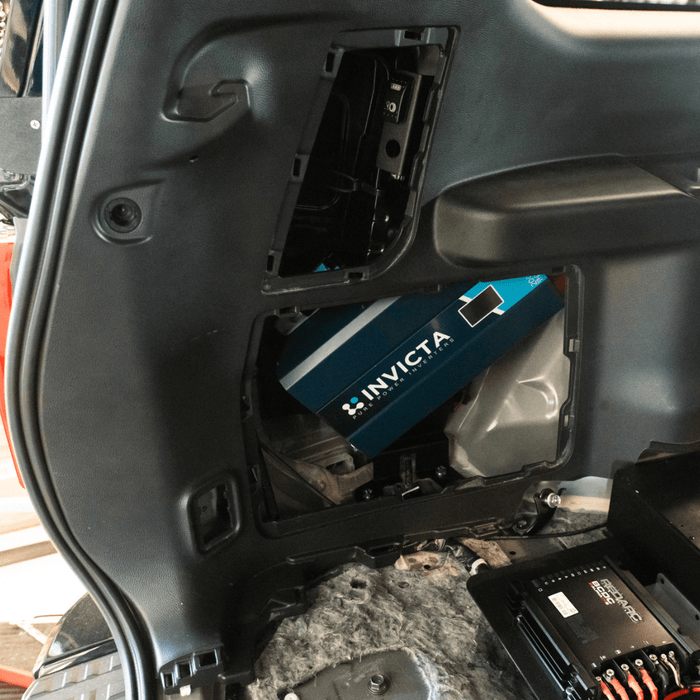

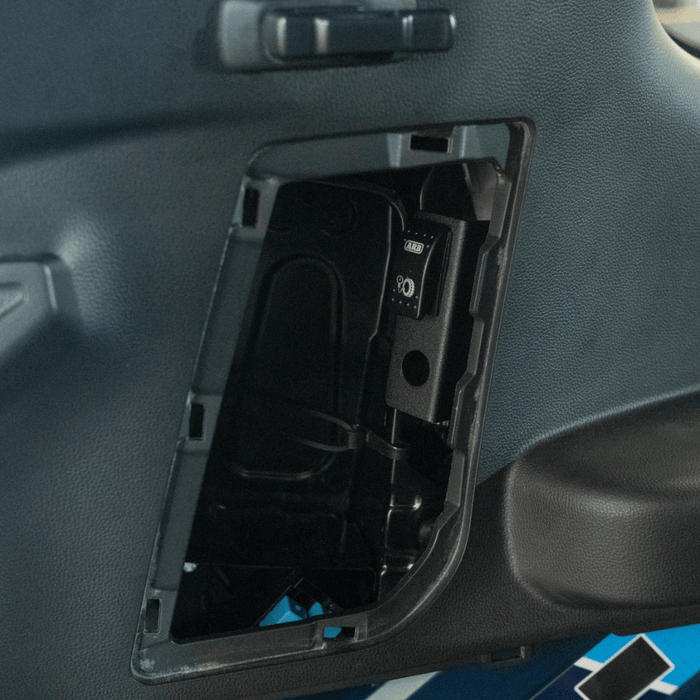

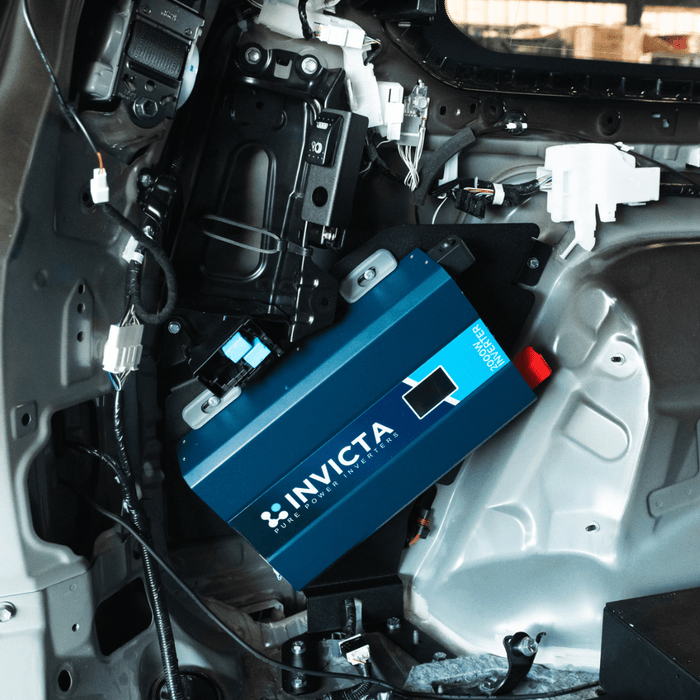

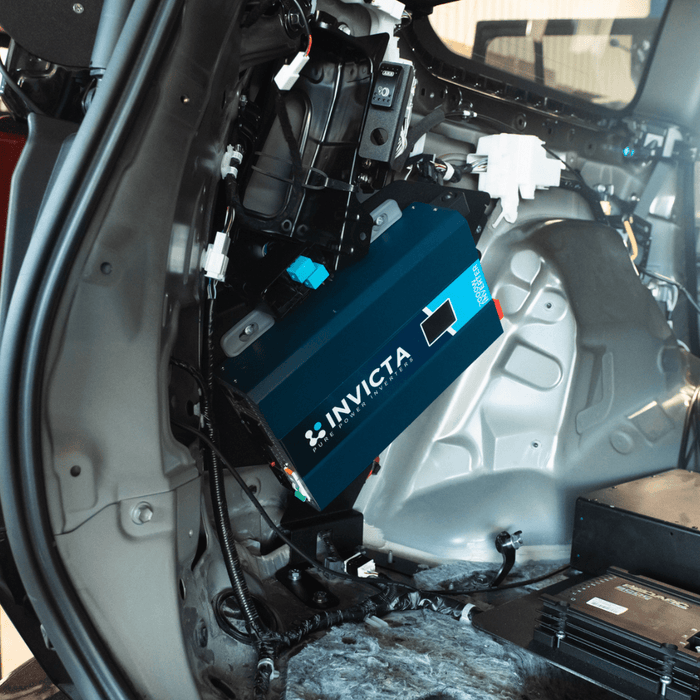

The bracket tucks neatly behind the lower trim hatch, allowing easy access to the inverter, while the upper hatch houses the air chuck and compressor switch for convenient tyre inflation on the go.

Key Features

• Factory-fit design – Bolts directly into existing mounting points inside the rear passenger-side quarter panel.
• No drilling or cutting – Installs without permanently modifying your Prado.
• Durable construction – Manufactured from heavy-duty mild-steel alloy and finished in a textured black powder coat.
• Tidy integration – The lower hatch provides inverter access, while the upper hatch houses the compressor switch and air chuck.
• Multiple configurations available – Choose the bracket only, add an inverter, add an ARB Brushed or Brushless Twin Air Compressor, or select the complete package.
• Mounting hardware included – Supplied with the required hardware for your selected configuration.
• Australian made – Proudly designed and manufactured on the Sunshine Coast, Queensland.

Inverter and Compressor Kit Options

This bracket is available in four configurations, allowing you to select the setup that best suits your vehicle. Each option is designed to integrate seamlessly with our Prado 250 Series Underfloor Dual Battery Kits.

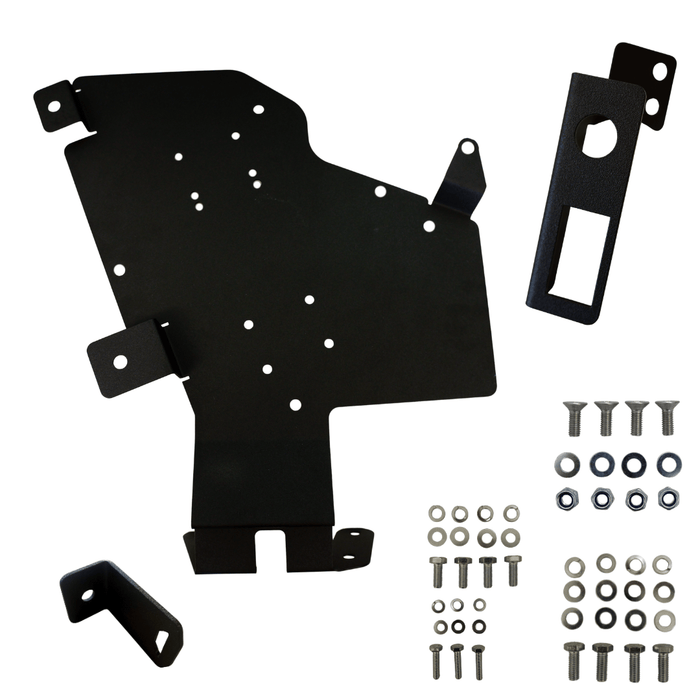

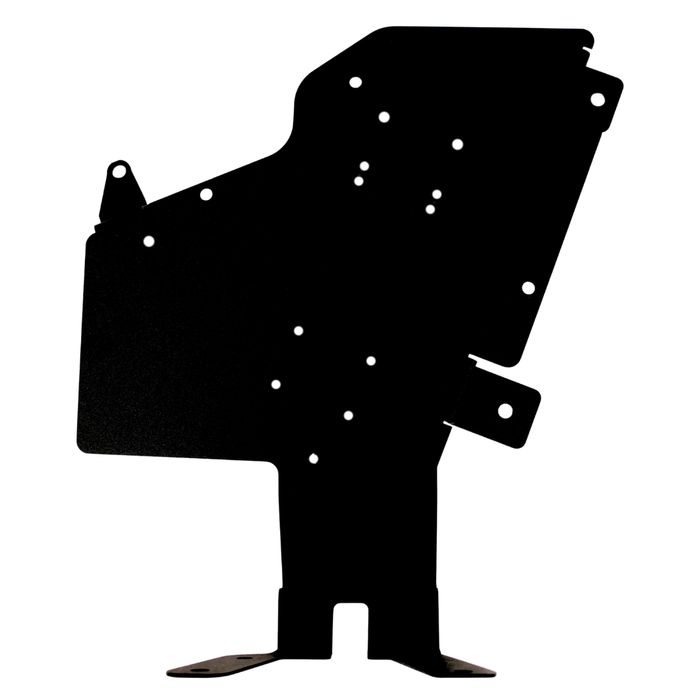

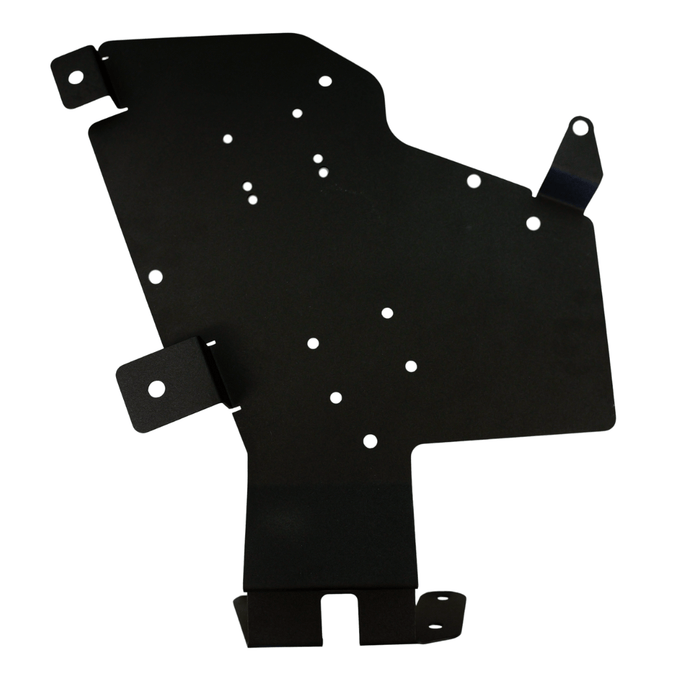

Bracket Only

Perfect if you already have an inverter or compressor, or would like to add them later.

Includes:

• Inverter Compressor Bracket with textured black finish

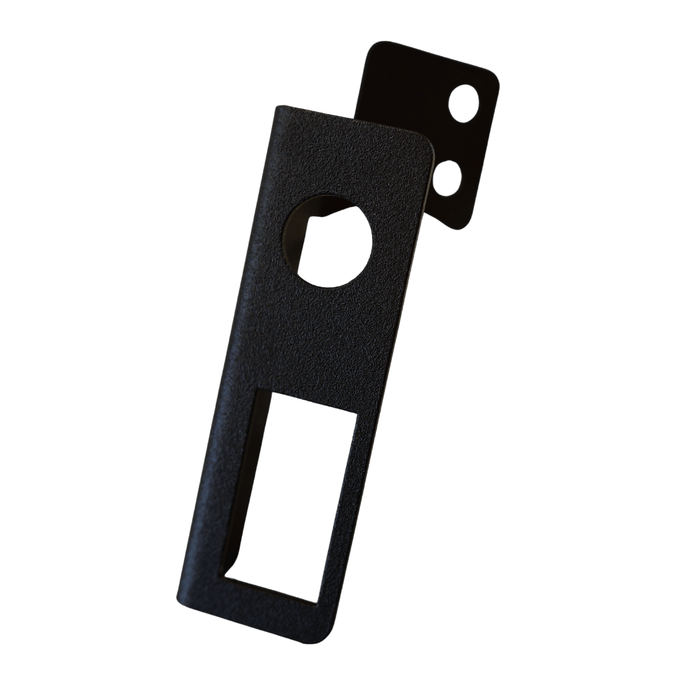

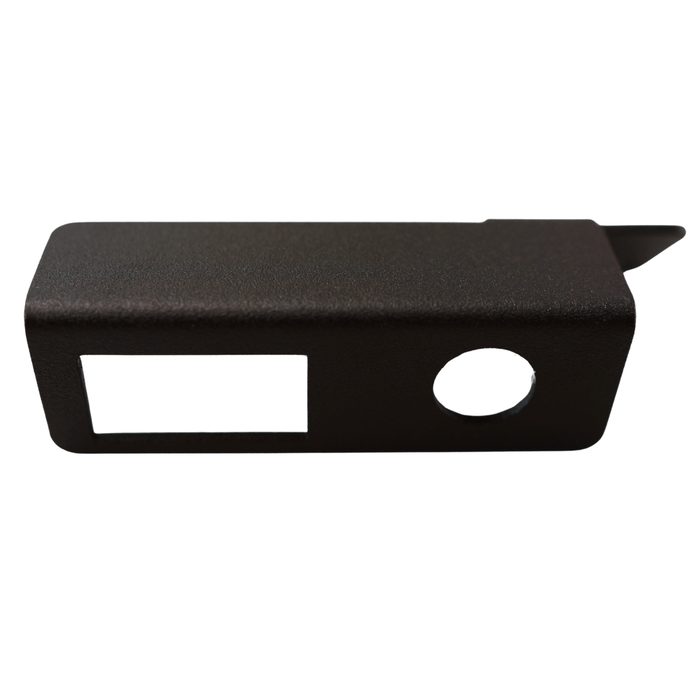

• Air chuck and compressor switch mounting plate
• Complete bracket mounting hardware kit

Everything required for a clean, factory-fit bracket installation.

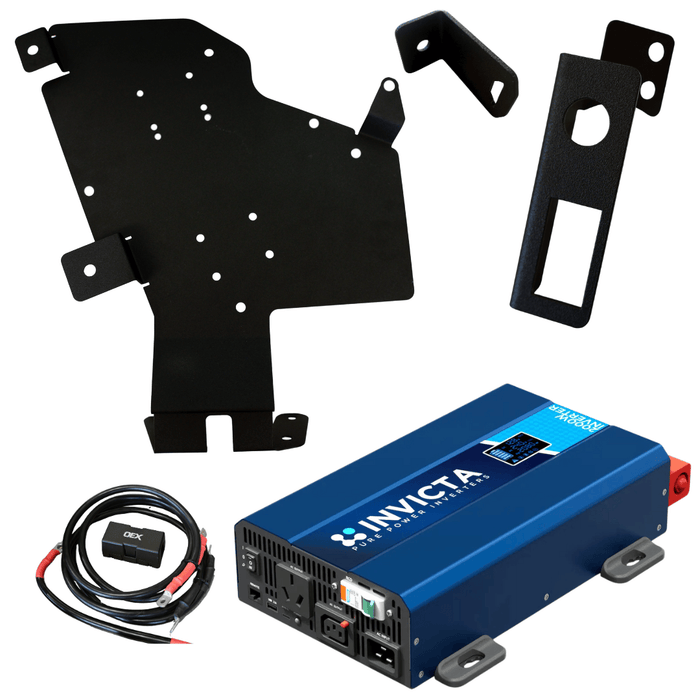

Bracket + Inverter Kit

Designed exclusively to integrate with our 100Ah and 200Ah Prado 250 Series Underfloor Dual Battery Kits, with the 200Ah option coming soon.

Includes:

• Everything supplied with the Bracket-Only option
• Invicta 2000W Inverter
• Pre-terminated inverter cabling
• Megafuse and associated mounting components

If this option is ordered at the same time as one of our compatible underfloor dual battery kits, we will pre-mount the megafuse and pre-run the wiring from the megafuse to the battery on the tray.

If the inverter bracket is purchased separately, the cabling and megafuse will be supplied loose. You will need to mount the megafuse and complete the final wiring connection to your existing dual battery system.

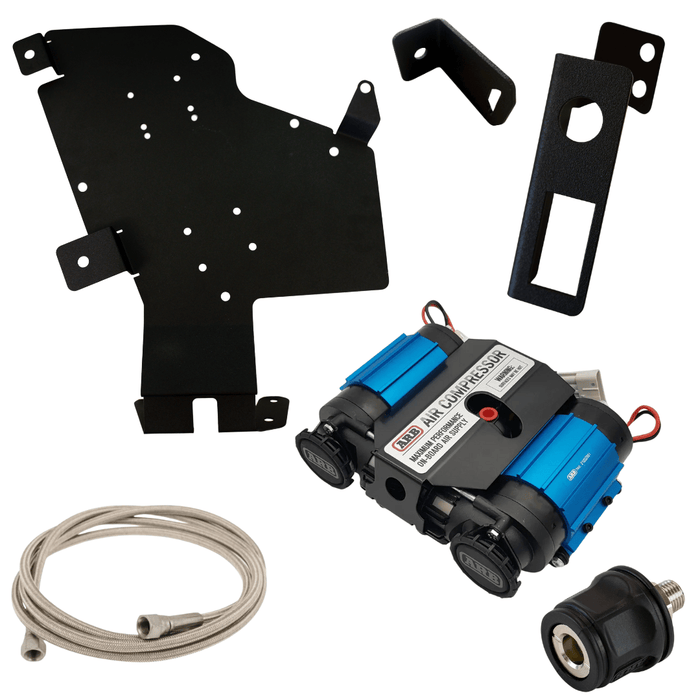

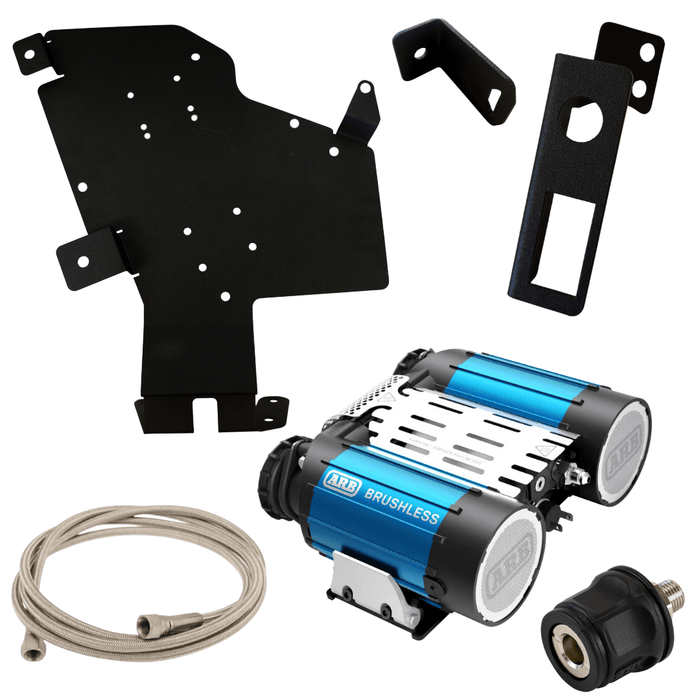

Bracket + Compressor Kit

Ideal for anyone wanting fast, convenient onboard air neatly concealed behind the factory trim. Choose between the proven ARB Brushed Twin Air Compressor or the next-generation ARB Brushless Twin Air Compressor.

Both compressors provide a 100% duty cycle and excellent performance for inflating tyres and supplying onboard air. The brushed model is a dependable and cost-effective choice for general touring, while the brushless model delivers up to 50% more airflow for faster inflation. It also features maintenance-free motors, active cooling, IP67 water and dust resistance, smart voltage and overload protection, and live diagnostic alerts.

The brushless compressor can draw up to 90A at maximum load, so the vehicle’s power supply, wiring and circuit protection must be correctly rated for the higher current requirement.

Includes:

• Your choice of ARB Brushed or Brushless Twin Air Compressor
• Everything supplied with the Bracket-Only option
• Compressor mounting hardware
• 1m air hose
• Air chuck
• Pre-terminated earth cable with lug
• Wiring and hardware required for a clean quarter-panel installation

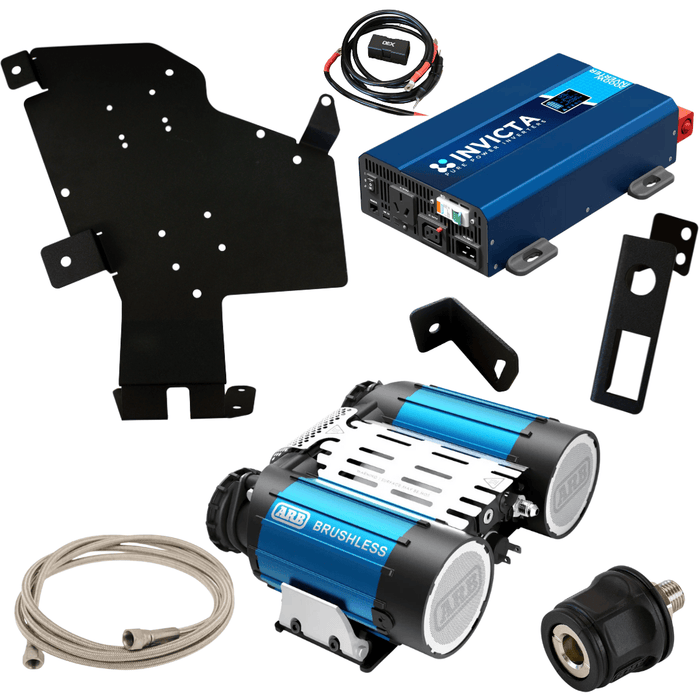

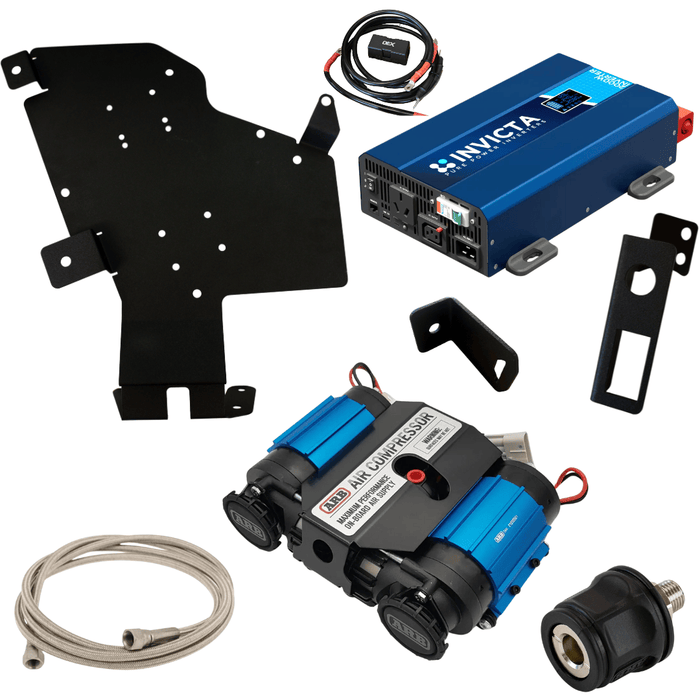

Bracket + Inverter + Compressor Kit

The complete off-grid package, combining the Invicta 2000W Inverter with your choice of an ARB Brushed or Brushless Twin Air Compressor.

This configuration includes everything supplied with the inverter and compressor options, prepared to integrate neatly with your compatible Prado 250 Series Underfloor Dual Battery Kit.

What’s Included

The exact inclusions will depend on the configuration selected:

• Inverter Compressor Bracket with textured black finish
• Air chuck and compressor switch mounting plate
• Complete bracket mounting hardware kit
• Optional Invicta 2000W Inverter with pre-terminated cabling and megafuse
• Optional ARB Brushed or Brushless Twin Air Compressor
• Compressor air hose, air chuck, wiring and mounting hardware where selected

Specifications

• Material: Mild-steel alloy
• Finish: Textured black powder coat
• Mounting location: Rear passenger-side quarter panel
• Installation: Uses existing factory mounting points
• Vehicle compatibility: Toyota Prado 250 Series
• Dual battery compatibility: Accelerate Off-Grid Touring 100Ah and upcoming 200Ah Prado 250 Series Underfloor Dual Battery Kits
• Compressor options: ARB Brushed or Brushless Twin Air Compressor
• Inverter option: Invicta 2000W Inverter

Important 2000W Inverter Compatibility Information

A 2000W inverter can be safely paired with our 100Ah Prado 250 Series Underfloor Dual Battery Kit only when the kit is supplied with the Invicta Super Slim battery.

The Invicta Super Slim battery has a 250A peak discharge rating, allowing it to support the peak current draw of the 2000W inverter. Other lithium batteries with lower peak discharge ratings are not suitable for operating a 2000W inverter in this configuration.

For this reason, any 100Ah kit ordered with the inverter option must be configured with the Invicta Super Slim battery to ensure safe, reliable performance under high electrical loads.
