Description
Jumpstart, smart charging, and reliable power — all under the bonnet.Purpose-built for the Toyota LandCruiser 300 Series, this plug & play system keeps your interior space free while delivering premium off-grid performance. Featuring the advanced REDARC Alpha BCDC charger, it gives you the ability to jumpstart your vehicle, maintain your start battery, prioritise solar charging, and control it all via Bluetooth.
Pair it with your choice of rear-cupholder-mounted socket bank for the ultimate touring setup.
🔑 Key Features

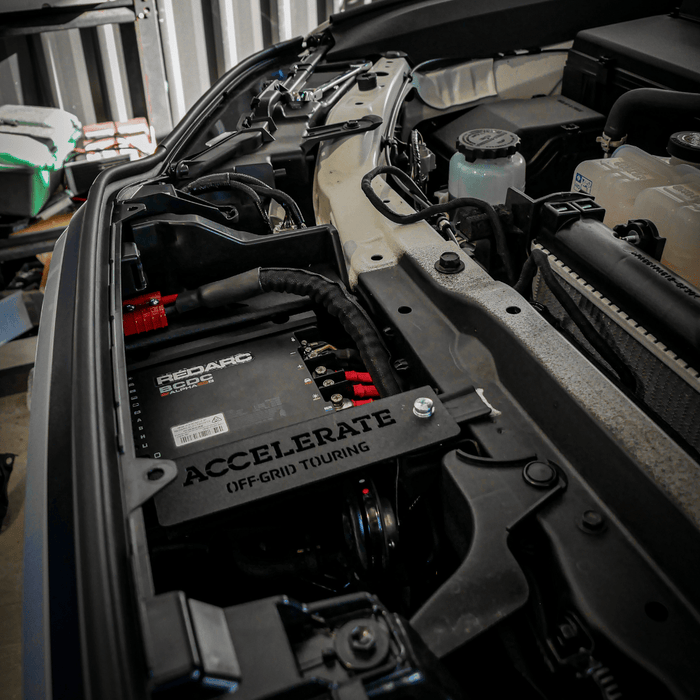

- Under-bonnet install – Keeps your interior and cargo space free for gear, passengers, and storage.
- Pre-wired components – Delivered as a true plug & play system for a fast, hassle-free installation.
- Vehicle-specific charge harness – Designed specifically for the LC300 for perfect fitment with no cutting or splicing.
- REDARC Alpha BCDC charger – Adds jumpstart capability, Bluetooth monitoring, and smarter charging control.
- Start battery maintenance & Green Power Priority™ – Keeps your start battery healthy while prioritising solar input to reduce alternator load.
- Adjustable alternator input draw – Allows you to set the maximum current draw to protect your vehicle’s electrical system.
- Heavy-duty 6 B&S cabling – Ensures efficient charging of caravan batteries while you drive.
- Custom battery tray & BCDC bracket – Laser-cut aluminium, powder-coated matte black for durability and a clean look.
-
Designed and built by Accelerate – Proudly engineered and tested on the Sunshine Coast for Australian touring conditions.

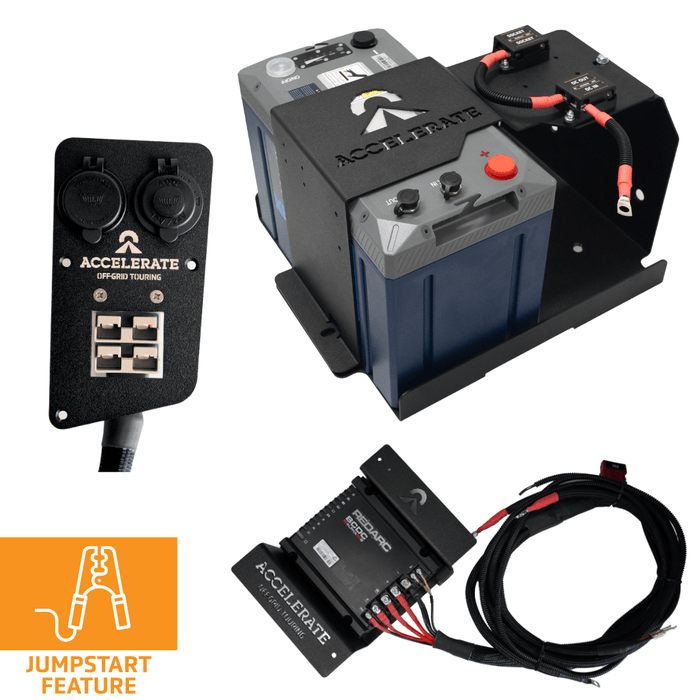

📦 What’s Included
- Custom laser-cut aluminium battery tray – under-bonnet install
- Custom laser-cut aluminium BCDC mounting bracket with solar input plug
- Invicta Lithium Battery (if selected)

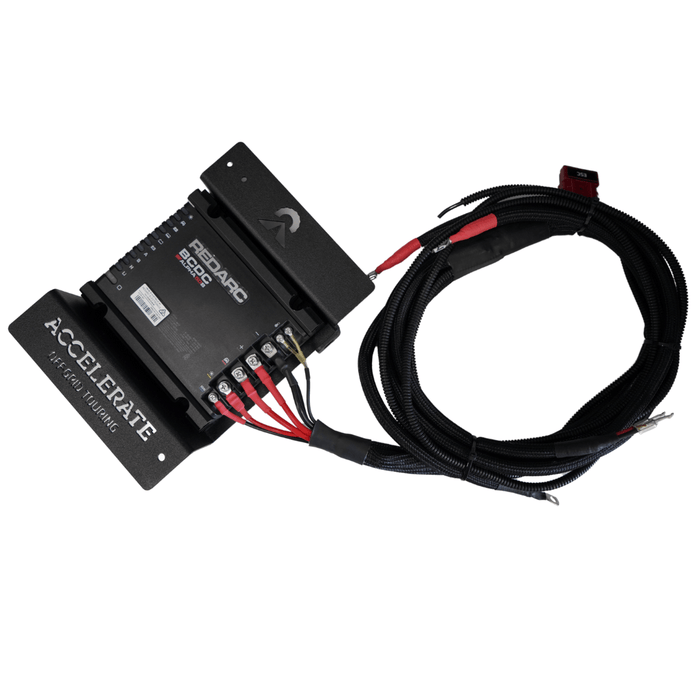

- REDARC Alpha BCDC charger – Alpha25 (25 A) or Alpha50 (50 A) pre-mounted
- Fully pre-wired, fused, and loomed cabling
- Accelerate Socket Bank of your choice (rear cupholder mount)
- All mounting hardware
🌞 Solar Input Options (Important for GR Sport Owners)

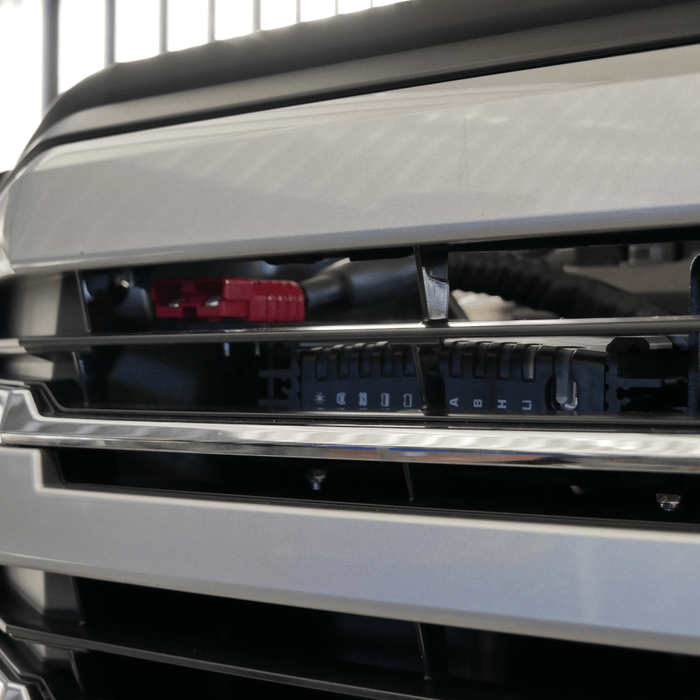

This system includes a RED Anderson solar input plug mounted on the front of the BCDC bracket for easy solar connection on standard 300 Series grilles.
If you have a GR Sport with the honeycomb grille, the front-mounted solar plug cannot be used due to grille clearance issues.
Instead, we will supply a dedicated under-bonnet solar mounting bracket so you can still run portable solar panels safely and cleanly.
🔋 Battery:
No Battery

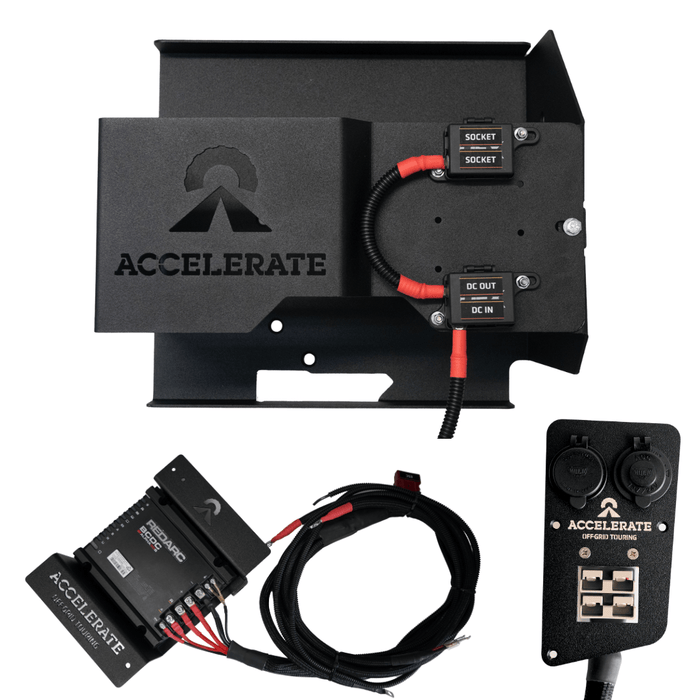

- Tray with BCDC mounted
- Pre-wired and fused
- Mounting hardware
- Note: Charger will be programmed for lithium unless otherwise requested

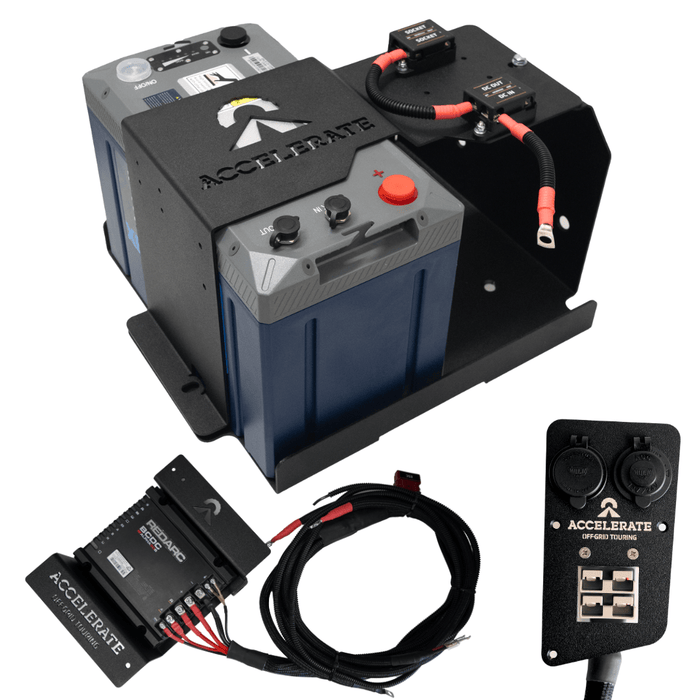

Invicta 12 V 100 Ah Xero Lithium
- Lightweight & compact design
- Bluetooth monitoring via Invicta app
- Advanced BMS for safety & performance
- 3-year Australian warranty
Invicta 12 V 120 Ah Xero Lithium
- Increased capacity for longer off-grid stays
- Same Bluetooth monitoring & BMS features
- Ideal for higher-power setups
- 3-year Australian warranty
⚡ Charger:
REDARC Alpha 25 – 25 A output for efficient charging and jumpstart capability, ideal for moderate touring setups.
REDARC Alpha 50 – 50 A high-output version for faster charging and greater power demands.
Alpha Series Key Benefits:
- Jumpstart a flat start battery in as little as 15 minutes
- Start battery maintenance mode
- Green Power Priority™ – prioritises solar input
- Adjustable input current limit
- Bluetooth monitoring via the RedVision app
- IP67/69K rated for harsh conditions
- Over-the-air firmware updates
🔌 Socket Bank:
- Socket Bank 1 - USB A/C + 12 V Socket + 2 Grey Anderson Outputs
- Socket Bank 2 - Dual USB A/C + 2 Grey Anderson Outputs
- Socket Bank 3- USB A/C + Engel Fridge Plug + 2 Grey Anderson Outputs
📏 Dimensions:
- Tray: 375mm (L) x 325mm (W) x 215mm (H)
- Dimension for Second Battery Compartment: 308mm (L) x 168mm (W) x220mm (H)
- Socket Bank: 160mm (L) x 86mm (W)
