We have only test the height of this tray with an Invicta Xero 100ah & 120ah Lithium Batteries.
Dimensions of the Invicta are: Length 306mm x Width 168mm x Height 215mm

Retain your factory battery Cover

1. Custom Accelerate Under Bonnet Battery Tray
2. Install Instructions
3. Spacers

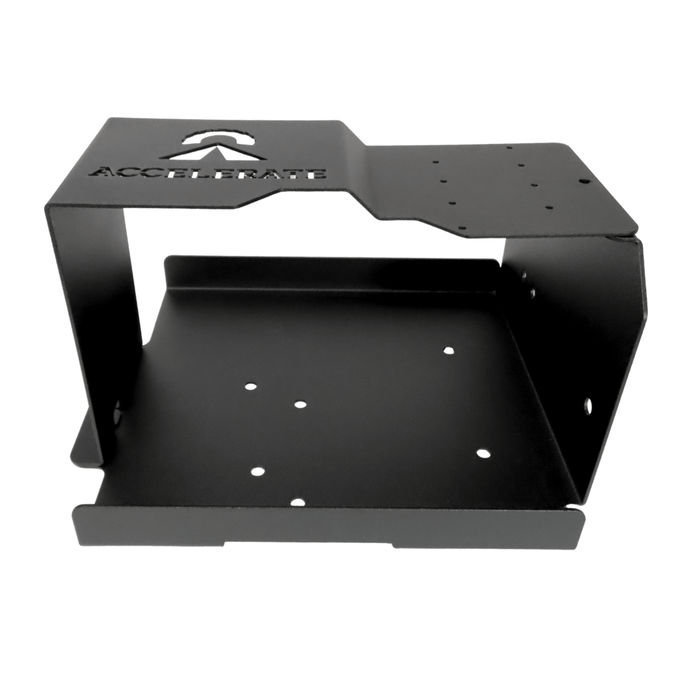

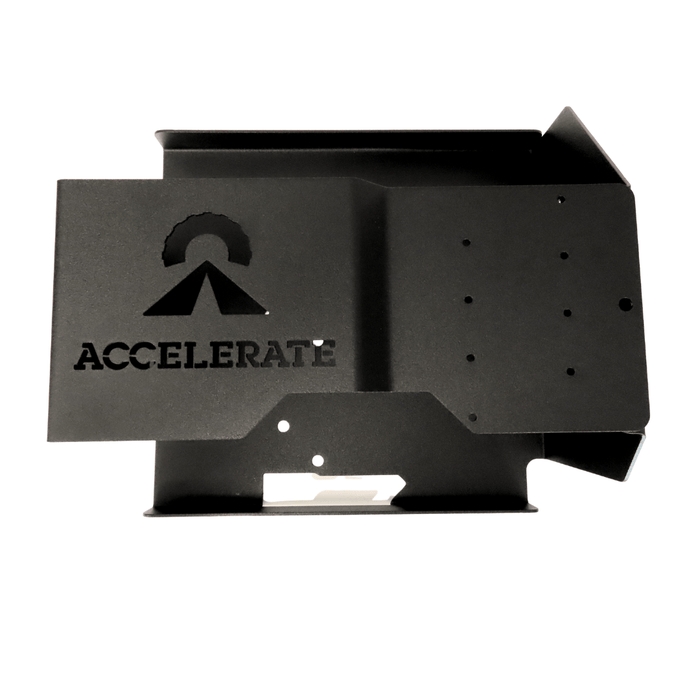

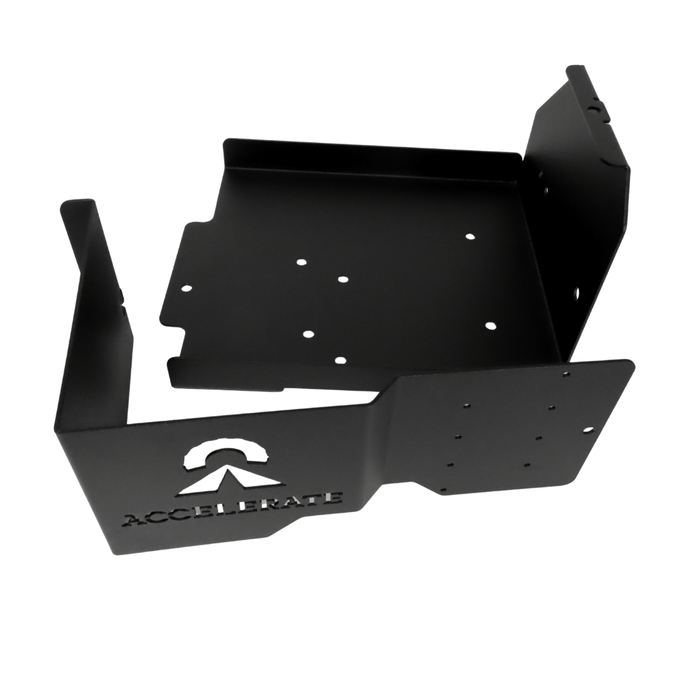

Custom LaserCut & Folded Aluminium Battery Tray. Fits in the original battery location. You will retain your existing start battery (now north > south) plus add in an Invicta 100ah or 120ah. Lithium Battery.

The Tray is pre-drilled with mounting locations for midi fuses to run all your accessories.

All mounting hardware that you need is included - like spacers, screws...

Socket Box's

The dimensions for all socket box configurations are 195mm L x 110 mm H x 60mm D.

Dual Sockets:

• Option 1 - 2x 12V Sockets
• Option 2 - 1x 12V Socket & 1x Dual USB
• Option 3 - 1x 12V Socket & 1x Voltmeter

Socket Box:

• Option 1 - 1x Anderson Plug, 2x 12V Sockets, 1x Voltmeter, 1x Dual USB
• Option 2 - 1x Anderson Plug, 1x 12V Socket, 1x Engel Style Socket, 1x Voltmeter, 1x Dual USB
• Option 3 - 1x Anderson Plug, 1x 12V Socket, 1x Merit Style Socket, 1x Voltmeter, 1x Dual USB
• Option 4 - 2x Anderson Plug, 2x 12V Socket, 1x Voltmeter, 1x Dual USB
• Option 5 - 1x Anderson Plug,  1x Red Anderson Plug for Solar Input,  2x 12V Socket, 1x Voltmeter, 1x Dual USB

Each kit comes with a Base Kit that includes:

• Installation Instructions
• Slimline Battery Bracket
• Socket Panel - 2 Options with 3 Variations Each Available
• Slimline Battery - Lithium Only
• DC-DC Charger - 2 Charger Options Available
• 6 Way Fuse Box
• 3x Grey Anderson Plugs
• 1x Red Anderson Plug
• Twin Midi Fuse Holder
• 60A Midi Fuse
• 250A Single Midi Fuse Holder
• 7m x 8 B&S Cable
• 1m x 6 B&S Cable
• 5m x 6mm Twin Core Cable
• 5m x 9.9mm Split Convoluted Tubing
• Thunder Tie Down Straps
• 8mm Cable Lug

Options Available:

Tray:

Standard - Raw Aluminium

Socket Panel:

Dual Sockets:

• Option 1 - 2x 12V Sockets
• Option 2 - 1x 12V Socket & 1x Dual USB
• Option 3 - 1x 12V Socket & 1x Voltmeter

Socket Box:

• Option 1 - 1x Anderson Plug, 2x 12V Sockets, 1x Voltmeter, 1x Dual USB
• Option 2 - 1x Anderson Plug, 1x 12V Socket, 1x Engel Style Socket, 1x Voltmeter, 1x Dual USB
• Option 3 - 1x Anderson Plug, 1x 12V Socket, 1x Merit Style Socket, 1x Voltmeter, 1x Dual USB
• Option 4 - 2x Anderson Plug, 2x 12V Socket, 1x Voltmeter, 1x Dual USB
• Option 5 - 1x Anderson Plug,  1x Red Anderson Plug for Solar Input,  2x 12V Socket, 1x Voltmeter, 1x Dual USB

Postage Time Frames:

As each kit is custom built it may take us some time to process and dispatch your order.

• 2 weeks estimated dispatch time
• Shipping can take 1-2 weeks depending on your location and postal service

If you need your kit within a particular deadline, please contact us prior to ordering so we can ensure your items can arrive on time.
