Description
Take the guesswork out of installing a high-capacity dual battery system with a complete plug-and-play solution designed specifically for compatible Toyota LandCruiser 79 Series models. Engineered for serious touring, work vehicles and off-grid travel, this system installs neatly behind the rear seat to provide dependable in-cab power without sacrificing valuable tray, canopy or floor space.
Every kit is supplied fully assembled, pre-wired and ready to install using premium automotive cable and protective sheathing. All wiring is pre-terminated, fused, labelled and cut to the correct length, eliminating the need to design a system, calculate cable sizes or crimp your own connections. Simply mount the assembled tray, route the supplied charging harness according to the installation instructions and connect the system using the colour-coded Anderson plugs.
Built around REDARC’s premium Alpha BCDC charging platform, the system provides intelligent charging from both the vehicle’s alternator and solar input. Bluetooth connectivity through the REDARC RedVision app allows you to monitor the charger, adjust compatible settings and initiate start battery recovery directly from your smartphone. Once the auxiliary battery is fully charged, excess solar power can also be used to automatically maintain the vehicle’s start battery.
Choose from no battery, an Invicta SuperSlim 100Ah lithium battery or the high-capacity Invicta SuperSlim 200Ah lithium battery. You can also choose to complete your own socket setup or add a driver-side or passenger-side 79 Series Power Console to create a complete, easily accessible rear-seat power solution.
Key Features
Complete Plug-and-Play System – Supplied fully assembled, pre-wired, fused, labelled and loomed for a clean and straightforward installation

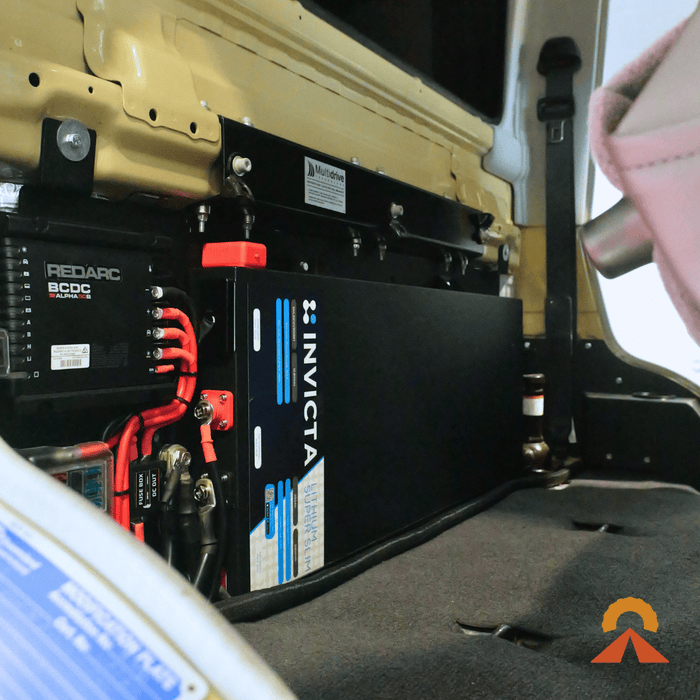

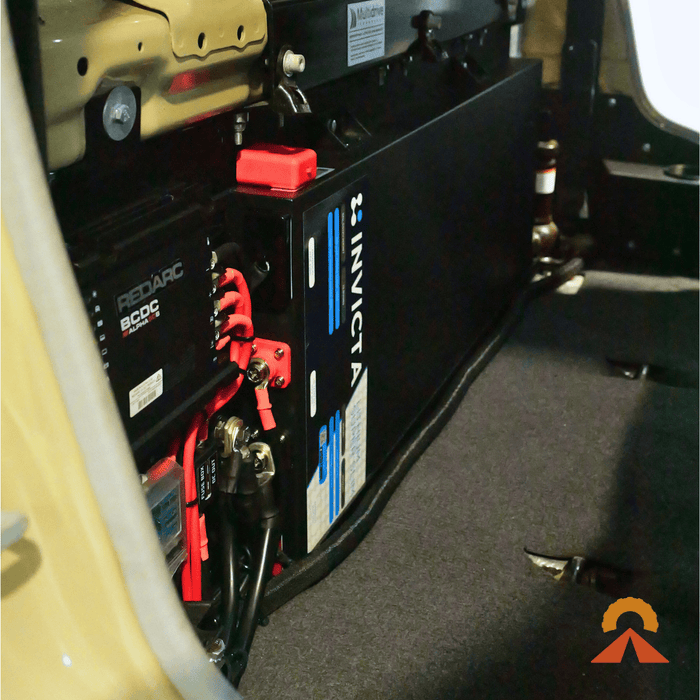

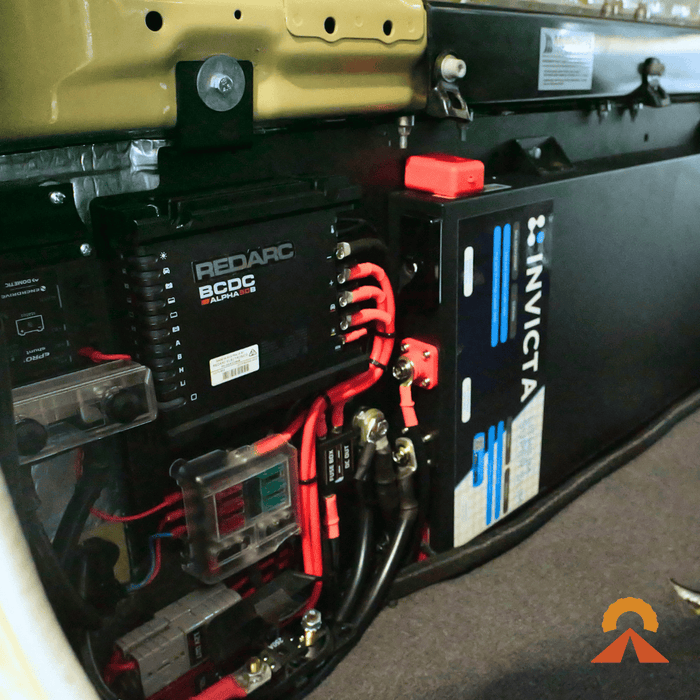

Behind-Seat Mounting – Installs neatly behind the rear seat while retaining valuable tray, canopy and floor space
Vehicle-Specific Fitment – Designed specifically for compatible Toyota LandCruiser 79 Series Single Cab and Dual Cab models
Flexible Battery Options – Available without a battery or with an Invicta SuperSlim 100Ah or 200Ah lithium battery
Start Battery Recovery – Recover a flat start battery through the REDARC RedVision app in as little as 15 minutes under suitable conditions
Start Battery Maintenance – Uses available excess solar power to maintain the vehicle’s start battery once the auxiliary battery is fully charged
REDARC Alpha Charging – Choose between a 25A or 50A REDARC Alpha BCDC charger with Bluetooth monitoring and dual alternator and solar inputs
Flexible Accessory Setup – Choose no socket option or add a driver-side or passenger-side 79 Series Power Console
Optional 79 Series Power Console – Features 12V and USB A/C power outlets, solar input, 12V output, two on/off switches and an integrated cup holder

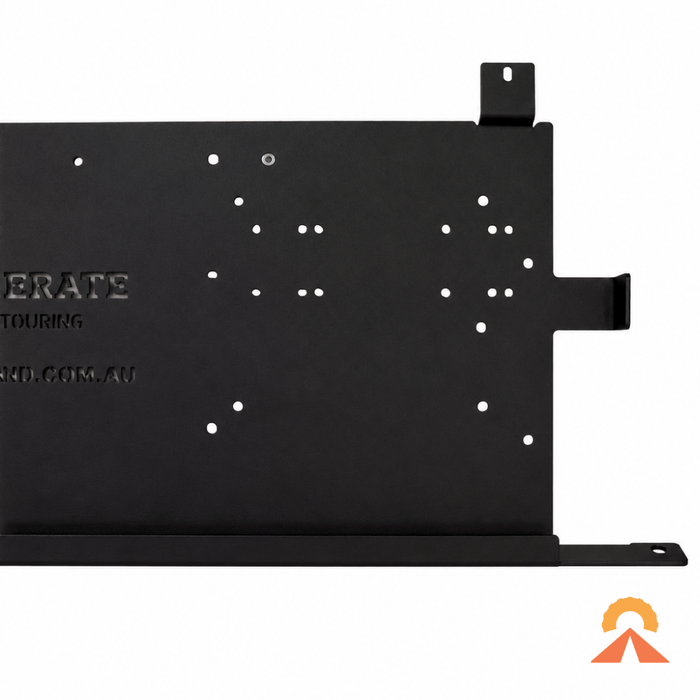

Premium Construction – Manufactured from laser-cut aluminium and finished in a durable matte black powder coating
Designed & Built in Australia – Engineered and assembled on the Sunshine Coast by Accelerate Off-Grid Touring

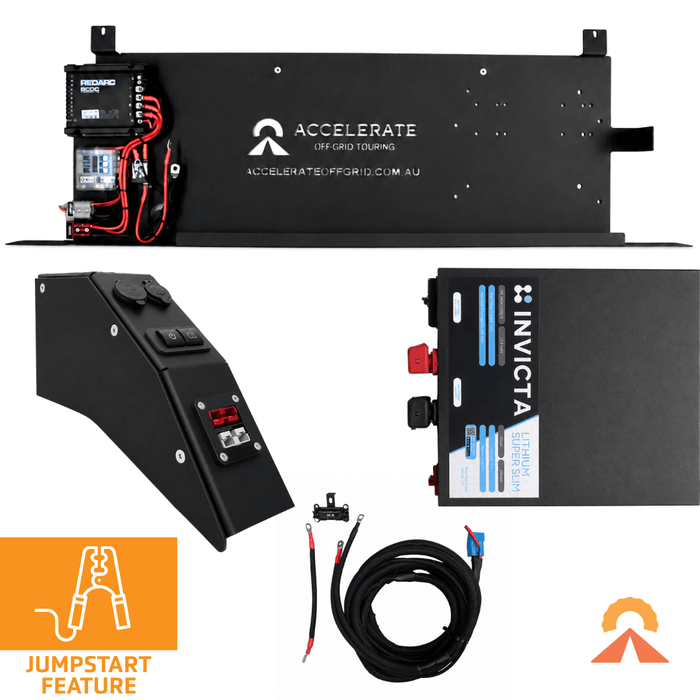

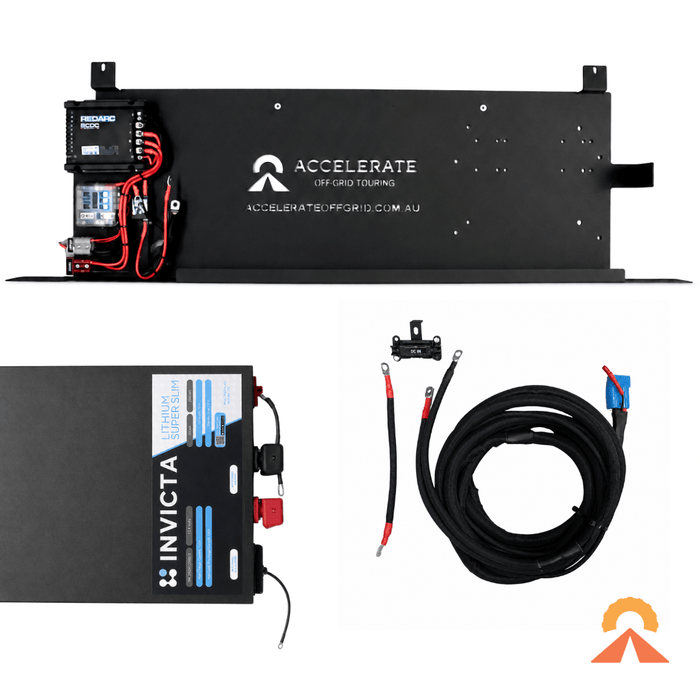

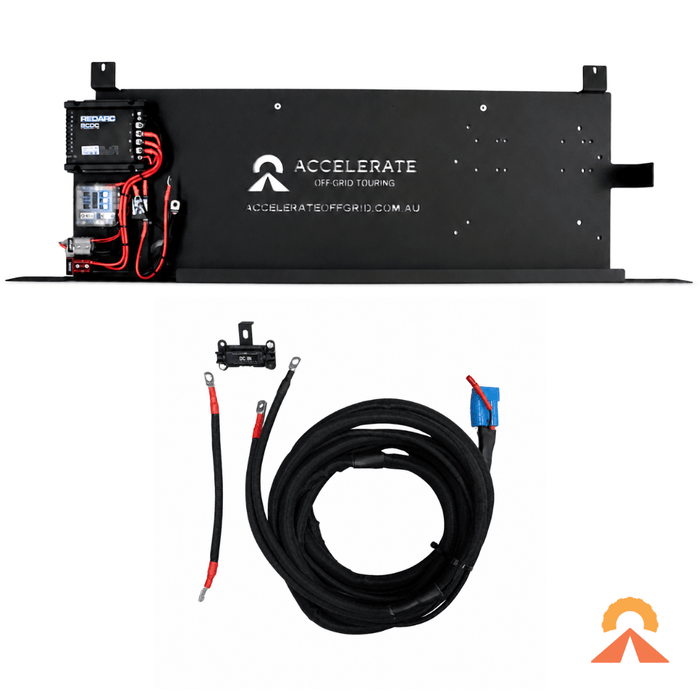

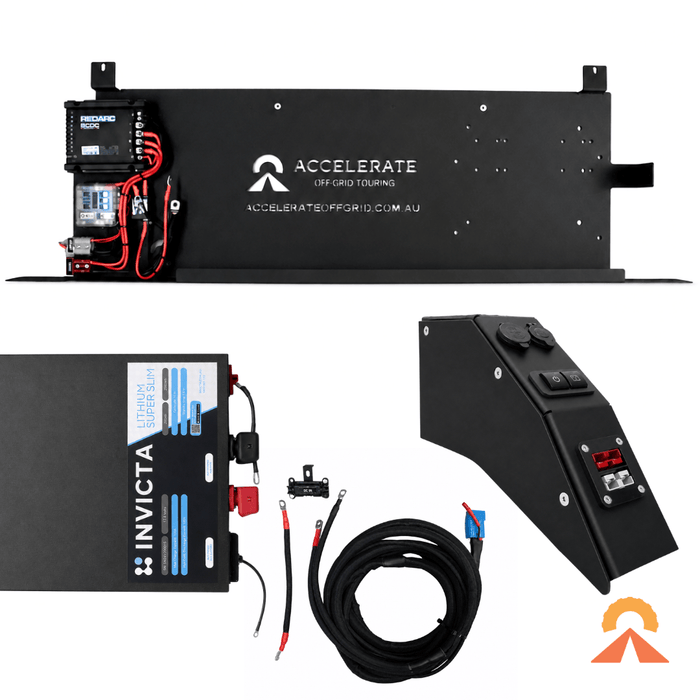

What’s Included

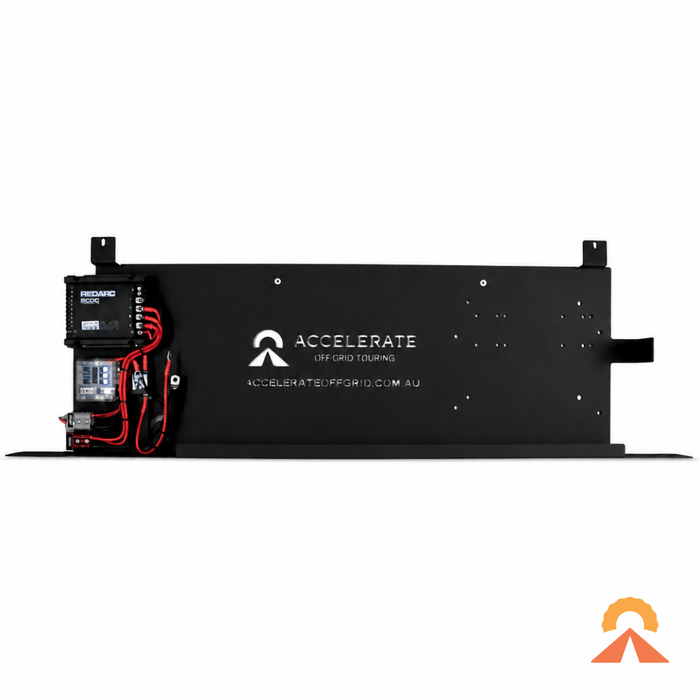

- Laser-cut aluminium behind-seat mounting tray
- Selected Invicta SuperSlim lithium battery, if selected

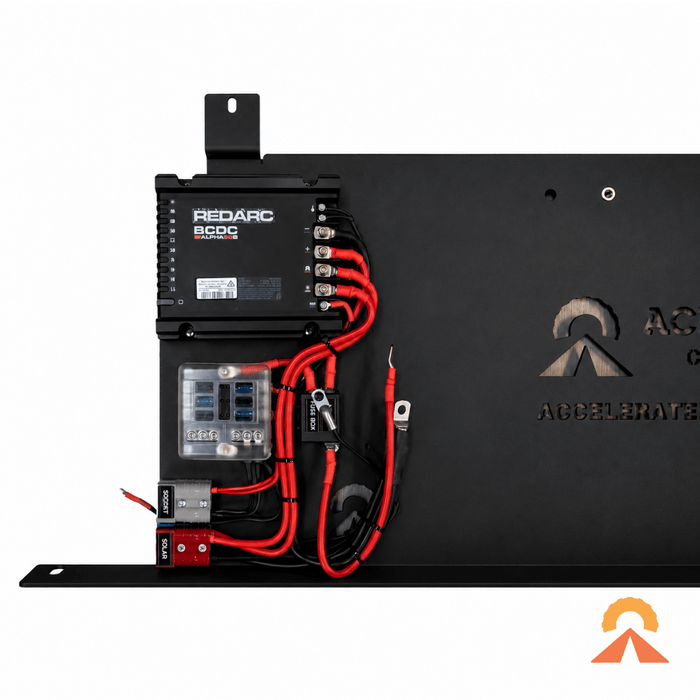

- REDARC Alpha 25A or 50A BCDC charger, pre-mounted
- Complete pre-wired, fused and loomed cable system

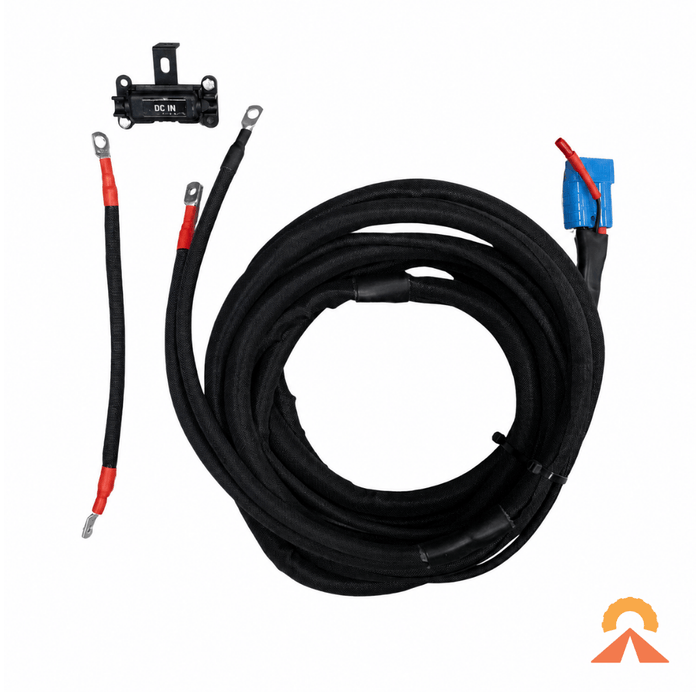

- Vehicle charging harness
- 6-way fuse box
- MIDI fuse holder
- Red, grey and blue Anderson plugs
- Battery connection cables
- No socket option or selected 79 Series Power Console
- All required mounting hardware
- Installation instructions
Battery Options
No Battery
Supplied without a battery, allowing you to install your preferred compatible lithium battery. The available internal battery space accommodates batteries up to approximately 1000mm (L) × 70mm (W) × 300mm (H).
The supplied battery cables are pre-terminated with lugs to make connecting a compatible battery as straightforward as possible. Always confirm the battery’s physical dimensions, terminal configuration, weight and charging requirements before purchasing.
A compact lithium option offering reliable performance and reduced weight for everyday touring, work vehicles and moderate accessory requirements.
- 100Ah Capacity – Suitable for powering fridges, camp lighting, communications equipment, device charging and everyday touring accessories.
- Super-Slim Construction – Designed to fit neatly behind the rear seat without taking up valuable cargo or canopy space.
- Bluetooth Battery Monitoring – Monitor battery capacity, voltage and operating status through the compatible Invicta smartphone app.
- Integrated Battery Management System – Built-in protection helps safeguard the battery against common electrical and operating faults.
- Lightweight Lithium Design – Provides a significant weight saving compared with an equivalent-capacity AGM battery.
- Australian Warranty Support – Backed by Invicta’s Australian warranty and support network.
Invicta SuperSlim 200Ah with Bluetooth
The premium high-capacity option for serious touring and off-grid setups requiring extended runtimes and the ability to operate multiple accessories.
- 200Ah Capacity – Provides substantial stored power for fridges, lighting, inverters, communications equipment and demanding touring accessories.
- More Than 2,000 Cycles at 100% Depth of Discharge – Designed to provide dependable long-term performance in demanding touring applications.
- Bluetooth Battery Monitoring – Monitor battery capacity, performance and operating status through the Invicta smartphone app.
- 250A Continuous Discharge – Supports high-current accessories and appropriately sized inverter systems.
- Super-Slim Construction – Delivers high-capacity power in a space-efficient format designed for behind-seat installations.
- Lightweight Design – Weighs approximately 26kg, providing a substantial capacity-to-weight advantage over AGM batteries.
- 5-Year Australian Warranty – Supported by a five-year Australian warranty for added confidence when travelling off-grid.
Charger Options
A compact and cost-effective charging option suited to daily drivers, lighter accessory requirements and setups where rapid battery recovery is not essential.
- 25A Charging Output – Provides controlled charging for compatible lithium auxiliary batteries.
- Bluetooth Connectivity – Monitor and control compatible charger functions through the REDARC RedVision app.
- Start Battery Recovery – Initiate start battery support directly from your smartphone.
- Green Power Priority™ – Prioritises available solar power before drawing from the vehicle’s alternator.
- Start Battery Maintenance – Directs available excess solar power to the start battery once the auxiliary battery is fully charged.
- Dual Charging Input – Accepts charging input from both the vehicle alternator and a compatible solar panel.
- Sealed Construction – Designed to withstand heat, dust and demanding vehicle environments.
- 2-Year Australian Warranty – Backed by REDARC’s Australian warranty and support.
The recommended higher-output option for faster charging, high-capacity batteries and vehicles with demanding touring or off-grid power requirements.
- 50A Charging Output – Delivers faster auxiliary battery recovery while driving.
- Bluetooth Connectivity – Monitor and control compatible charger functions through the REDARC RedVision app.
- Start Battery Recovery – Initiate start battery support directly from your smartphone.
- Green Power Priority™ – Prioritises available solar power before drawing from the vehicle’s alternator.
- Start Battery Maintenance – Directs available excess solar power to the start battery once the auxiliary battery is fully charged.
- Dual Charging Input – Accepts charging input from both the vehicle alternator and a compatible solar panel.
- Adjustable Alternator Draw – Allows the alternator input to be configured to suit the vehicle and installation.
- Sealed Construction – Designed to withstand heat, dust and demanding vehicle environments.
- 2-Year Australian Warranty – Backed by REDARC’s Australian warranty and support.
Note: The REDARC Alpha charger will be programmed for lithium batteries unless otherwise requested.
Socket Options
No Socket Option
Choose the no-socket option if you would prefer to create your own customised power outlet and accessory setup. The system includes 2 x grey Anderson outputs on the tray and 1 x red Anderosn for solar input on the tray, allowing you to install and wire your preferred sockets, switches or accessories to suit your individual requirements.

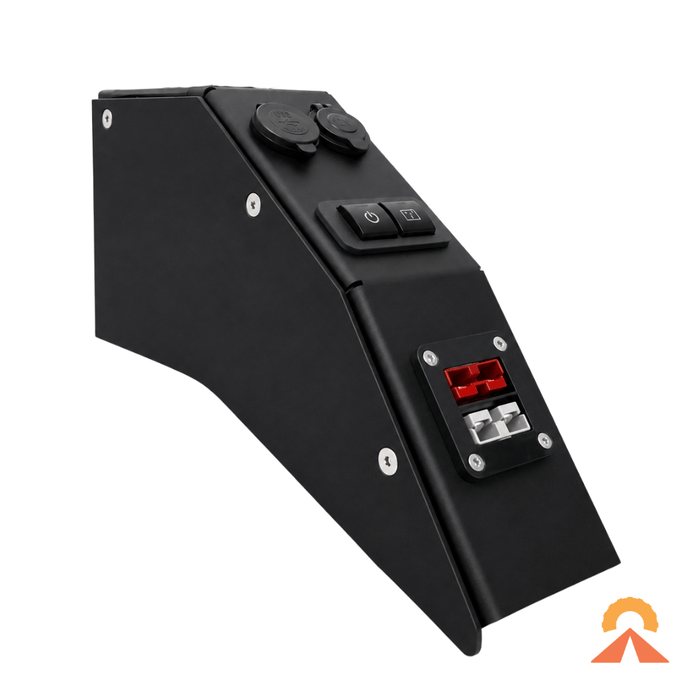

Passenger-Side 79 Series Power Console
79 Series Power Console provides a clean and convenient power hub beside the rear seat, directly behind the corresponding rear door.
Designed exclusively for Toyota LandCruiser 79 Series Dual Cab models, the console places your most frequently used power connections within easy reach while maintaining a neat, vehicle-specific finish.
Each console includes:
- 1 × 12V socket
- 1 × dual USB-A and USB-C socket
- 1 × red Anderson plug for solar input
- 1 × grey Anderson plug for 12V output
- 2 × on/off switches
- 1 × integrated cup holder suitable for a standard 375ml can
Please note: The two on/off switches are supplied unwired, allowing you to configure them for your preferred accessories. Switch wiring must be completed during installation.
Specifications
- Vehicle Compatibility – Toyota LandCruiser 79 Series Pre-Facelift Single Cab and Dual Cab, and Facelift Dual Cab only
- Fitment Exclusion – Facelift Single Cab models
- Mounting Location – Behind the rear seat
- Tray Dimensions – 1375mm (L) × 450mm (H) × 70mm (W)
- Maximum Battery Space – Approx. 1000mm (L) × 70mm (W) × 300mm (H)
- Battery Options – No battery, Invicta SuperSlim 100Ah or 200Ah lithium
- Charger Options – REDARC Alpha 25A or 50A
- Charging Inputs – Alternator and solar
- Monitoring – Bluetooth via the Invicta or REDARC RedVision app
- Connections – Red, grey and blue Anderson plugs
- Socket Options – DIY outputs or driver-side/passenger-side Power Console
- Power Console Compatibility – 79 Series Dual Cab only
- Power Console Location – Beside the rear seat, behind the corresponding rear door
- Power Console Outlets – 12V socket, dual USB-A/USB-C, red solar input and grey 12V output
- Power Console Switches – Two unwired on/off switches
- Cup Holder – Suits a standard 375ml can
- Tray Material – Laser-cut aluminium
- Finish – Matte black powder coating
- Assembly – Assembled, pre-wired, fused and loomed
- Designed & Assembled – Sunshine Coast, Queensland, Australia
