Dual Battery – 79 Series LandCruiser – 200Ah Behind Seat - With Jumpstart Feature

SKU AAE79200TRAYNBALPHA50

This all-in-one, plug & play kit mounts neatly behind the driver’s side rear seat and delivers serious off-grid power without touching your tray or floor space and includes a built-in jump start feature for added peace of mind.
$1,950.00 - $4,849.00
$2,050.00
$1,950.00 - $4,849.00
$2,050.00

Designed for:

79 Series LandCruiser - 2012 to Current - Pre and Post Face Lift - Dual Cab Only

Description

Toyota LandCruiser 79 Series Behind-Seat 200Ah Dual Battery Kit

Designed for maximum in-cab power without sacrificing usable space, the Toyota LandCruiser 79 Series Behind-Seat 200Ah Dual Battery Kit delivers a high-capacity, fully integrated power solution mounted neatly behind the rear seat. Engineered for serious touring setups, this system combines a super slim 200Ah lithium battery with REDARC’s advanced Alpha BCDC charger for reliable, intelligent power management.

With full plug-and-play wiring, start battery support, and optional socket expansion, this kit provides a clean, professional solution for running fridges, accessories, and off-grid systems directly from inside your cab.

Key Features

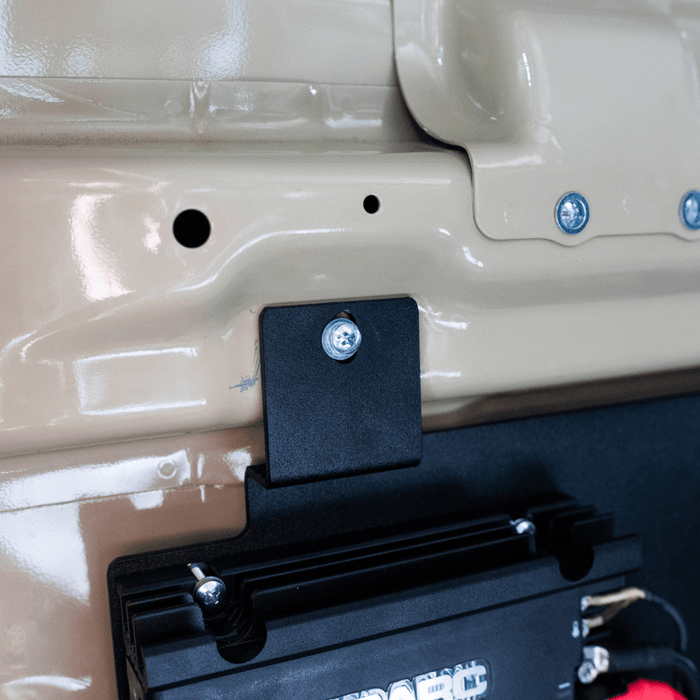

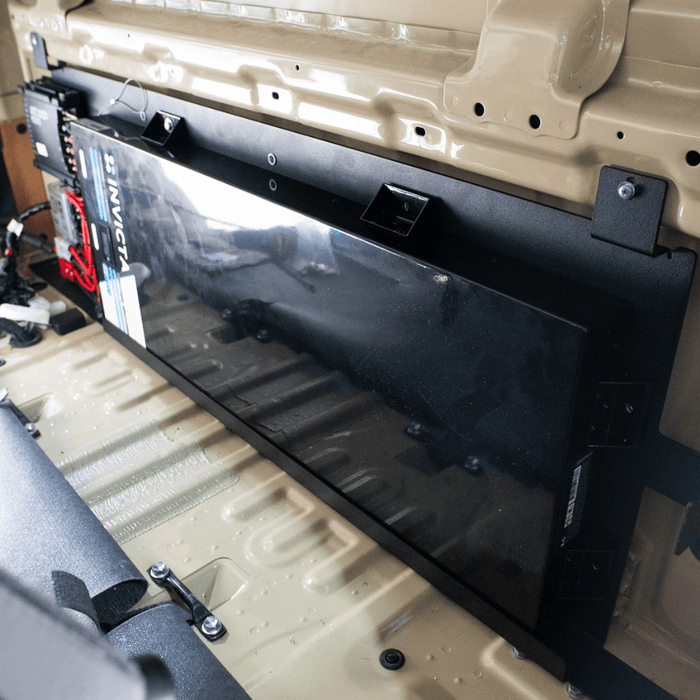

Behind-Seat Mounting – Installs neatly behind the rear seat on the driver’s side while retaining full tray and floor space

Vehicle-Specific Fitment – Designed to suit 79 Series Dual Cab models (pre and post-facelift)

Start Battery Charging – Recover a flat start battery with the push of a button in as little as 15 minutes, and utilise excess solar power to automatically maintain your start battery when the auxiliary battery is full

High-Capacity Power System – Supports a 200Ah super slim lithium battery for extended off-grid use

REDARC Alpha Charging – Advanced BCDC charger with Bluetooth monitoring and dual input (solar + alternator)

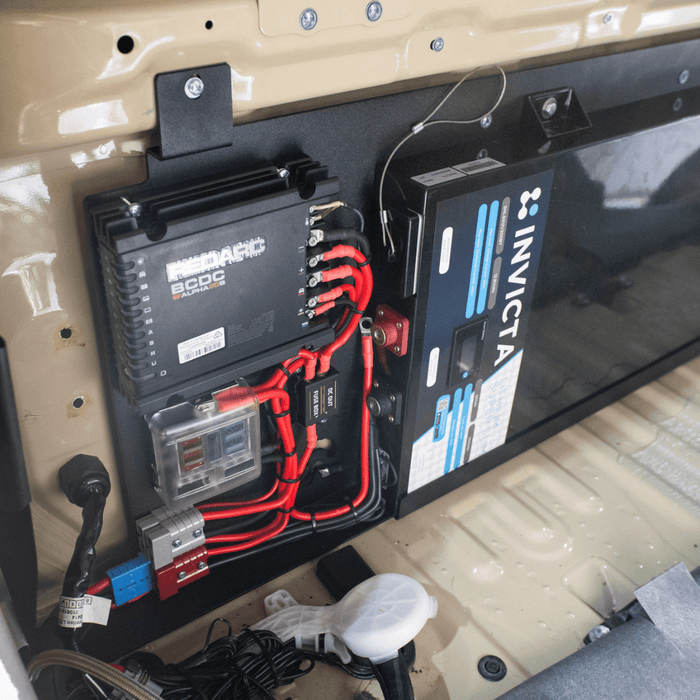

Plug-and-Play Integration – Pre-wired, fused and loomed system for a clean and simple install

Accessory Ready – Includes red & grey Anderson outputs and provisions for optional socket box

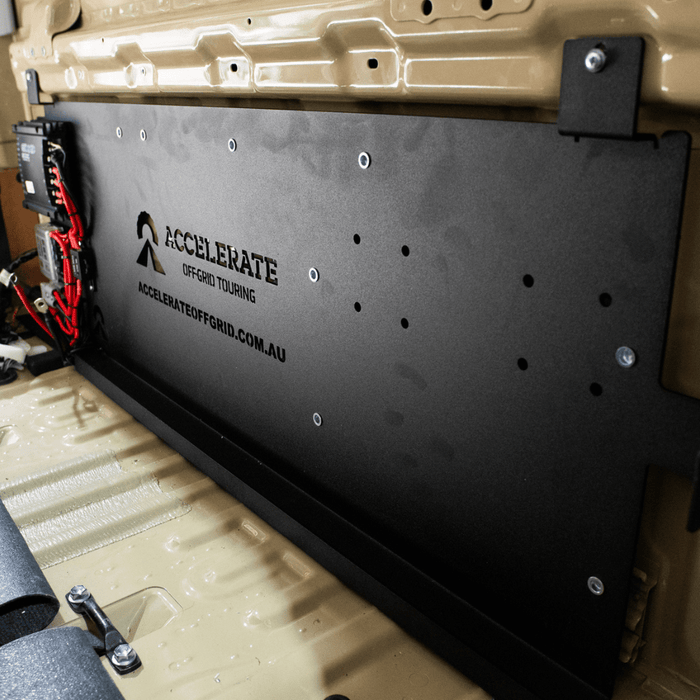

Durable Construction – Laser-cut aluminium tray with a matte black powder-coated finish

Designed & Built in Australia – Engineered and assembled on the Sunshine Coast by Accelerate Off-Grid Touring

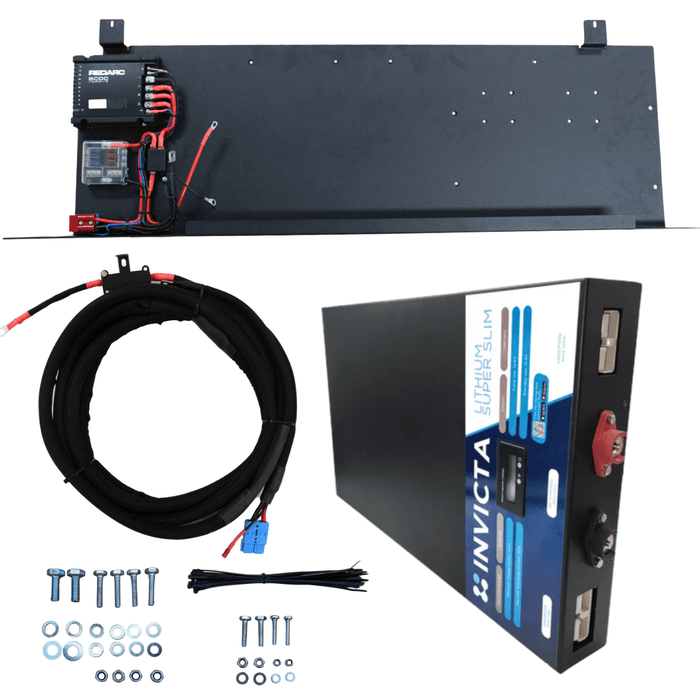

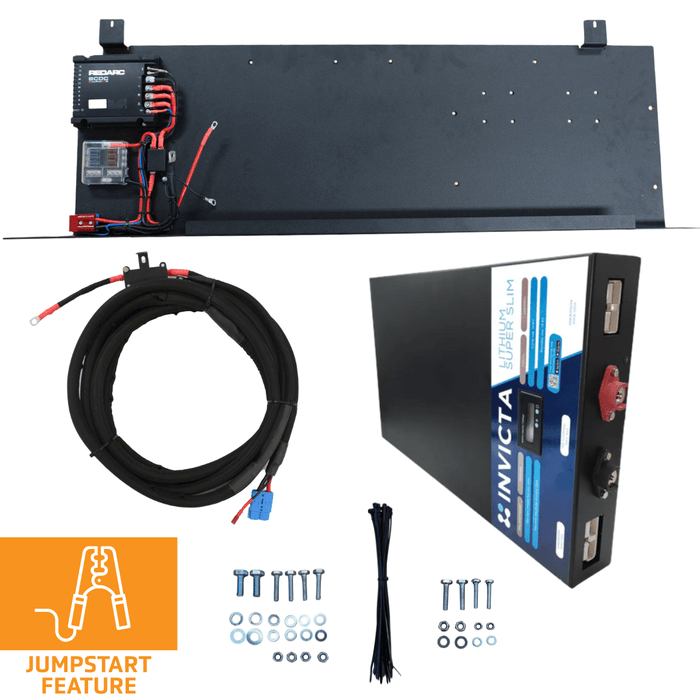

What’s Included

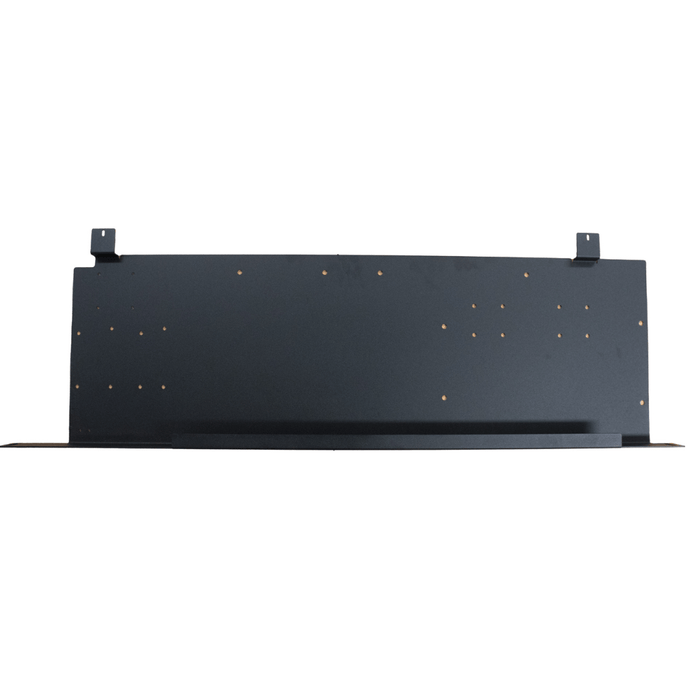

  • Laser-cut aluminium tray - behind seat installation
  • A super slim lithium battery (if selected)
  • REDARC Alpha BCDC charger – 25A or 50A (pre-mounted)
  • All cabling – pre-wired, fused & loomed

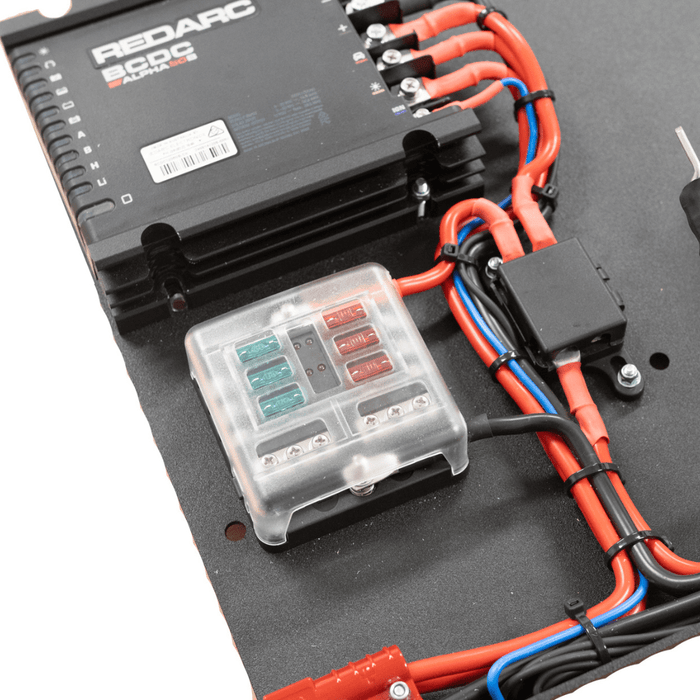

  • 6-way fuse box + MIDI fuse holder
  • Red, grey & blue Anderson plugs
  • All mounting hardware

Battery

No Battery

  • Tray with BCDC Mounted
  • Pre-wired and fused
  • Mounting hardware

Note: Charger will be programmed for lithium unless otherwise requested.

Invicta 12V200AH Slimline with Bluetooth

  • >2000 cycles at 100% DoD
  • Bluetooth monitoring via Invicta app
  • 250A continuous discharge
  • Weighs only 26kg
  • 5-year Australian warranty

Charger

REDARC Alpha 25A - Compact and cost-effective ideal for lighter setups or daily drivers

Includes full Alpha features:

  • Jumpstart support via Bluetooth app
  • Green Power Priority™
  • Start battery maintenance
  • Dual input – solar + alternator
  • Fully sealed & heat resistant
  • 2-year Australian warranty

REDARC Alpha 50A - Higher output for faster charging on larger setups

Includes all Alpha features:

  • Jumpstart support via Bluetooth app
  • Green Power Priority™
  • Start battery maintenance
  • Dual input – solar + alternator
  • Adjustable alternator pull
  • Fully sealed & heat resistant
  • 2-year Australian warranty

Optional Socket Box Add-On

Optional Add-Ons

Socket Bank Wiring Harness

Designed specifically for our Behind Seat Dual Battery Kits, this plug-and-play wiring harness provides a simple connection between the dual battery kit and your chosen rear power solution. The harness is pre-terminated with Anderson plugs and is designed to plug directly into the dual battery kit and then directly into your selected Socket Bank or Customisable 12V Power Distribution Box. Supplied cut to length and ready to install, it eliminates the need for custom wiring while delivering a clean, professional installation.

Customisable 12v Power Distribution Box

A premium power distribution solution designed to complement your dual battery system with a clean, professional installation. Manufactured in-house from laser-cut and fully welded aluminium, the box features configurable socket layouts, dual Anderson outputs, and a dedicated solar input.

Specifications

  • Tray Dimensions: 1375mm (L) x 450mm (H) x 70mm (W)
  • Internal Battery Space: Sized to suit super slim batteries up to approx. 1000mm (L) x 70mm (W) x 300mm (H)
  • Maximum Battery Compatibility: Designed specifically around 200Ah slimline lithium batteries (e.g. Invicta Slimline range)
  • Construction: Laser-cut aluminium
  • Finish: Matte black powder-coated
  • Mounting Location: Behind rear seat (driver’s side)
  • Vehicle Compatibility: Toyota LandCruiser 79 Series (Pre-Facelift Single Cab & Dual Cab, and Facelift Dual Cab Only) – Not compatible with Facelift Single Cab models
FAQs

What’s the benefit of using the REDARC Alpha charger in this kit?

The Alpha charger gives you more than just charging, it includes start battery maintenance, Bluetooth app control, and a built-in jumpstart feature so you can boost your start battery using your lithium battery if it ever goes flat.

Does this kit fit both Single Cab and Dual Cab 79 Series models?

Yes, the tray is designed to fit behind the rear seat of both Single Cab and Dual Cab 79 Series LandCruisers, including pre- and post-facelift models.

Is the socket box included with this kit?

No, the socket box is an optional add-on. The tray includes red, grey, and blue Anderson plugs, so you can either plug in one of our universal socket boxes or wire your own custom outlets.

Can I install this kit myself?

Yes, it’s a full DIY-friendly setup. Everything comes pre-wired, fused, loomed, and labelled. As long as you’re comfortable with basic tools and 12V systems, you’ll be good to go.

Does this kit work with child restraints?

Yes. The 200Ah tray is fully compatible with child restraints. The tray’s mounting holes are positioned on either side of the child restraint anchor point, so installation does not interfere with its use.

Workshop Install

Want It Installed In Your 79 Series?

If you’d like this 79 Series Behind-Seat Dual Battery Kit professionally installed into your vehicle, we’ve got you covered.

Simply purchase this product and then get in touch with the team at Accelerate Off-Grid Touring to book your installation.

Installations start from $770 – contact us for a tailored quote.

Address: 17 Trinder Avenue, Maroochydore QLD
Phone: 07 5479 6652
Website: accelerateoffgrid.com.au

Click here to get in touch and book your install.

Installation Instructions

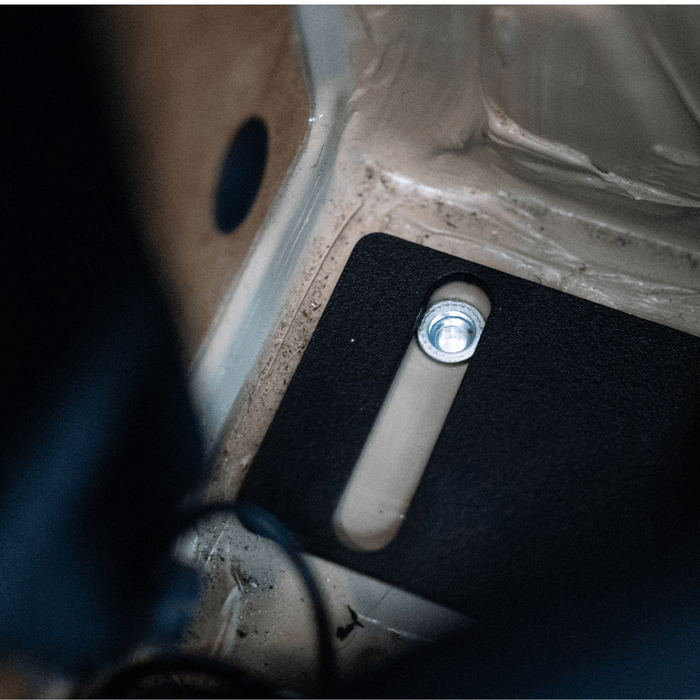

⚠️ Important: This product requires a Nutsert Tool for installation. If you don’t already own one, you can purchase our Nutsert Tool here.

Installation Video
Installation PDF

If you run into any issues during your install or need some advice, our team is here to help.

Simply click here to access our Tech Support Form and we’ll get back to you as soon as possible.

Shipping Disclaimer

This kit has a one-week build time before dispatch. Once assembled, it will be shipped via TNT.

If your order includes a lithium battery, please note it will be classified as Dangerous Goods. These shipments often pass through multiple checkpoints and may experience additional delays. Unfortunately, due to the nature of Dangerous Goods, couriers are unable to provide accurate estimated delivery dates.

Once your order has been shipped, you’ll receive a tracking number. If you don’t see regular tracking updates through the link provided, we recommend calling TNT directly on 13 11 50 with your tracking number. As the shipment is now in the hands of the courier, it’s best for the receiver to contact TNT directly for updates.

Thanks for your patience while we get your kit safely delivered.

If you have any further questions, please get in touch via our Contact Us form.

Fitment Disclaimer

Our kits are designed and tested to suit vehicles in standard factory configuration. If your vehicle has any aftermarket accessories, modifications, or non-factory components fitted, compatibility cannot be guaranteed.

We strongly recommend that you carefully read and watch all provided instructions, specifications, and installation guidance prior to purchasing. It is the customer’s responsibility to assess their individual vehicle setup and make an informed purchasing decision.

Accelerate Off-Grid Touring accepts no responsibility for fitment issues arising from aftermarket modifications or accessories.
