This isn't the first under bonnet dual battery kit built for the Next-Gen Ford Ranger and Ranger Super Duty, and that was never the goal. We let the early kits hit the market first, watched where they failed under real touring conditions, and used that knowledge to engineer the most thoroughly supported under bonnet dual battery system available for these platforms.

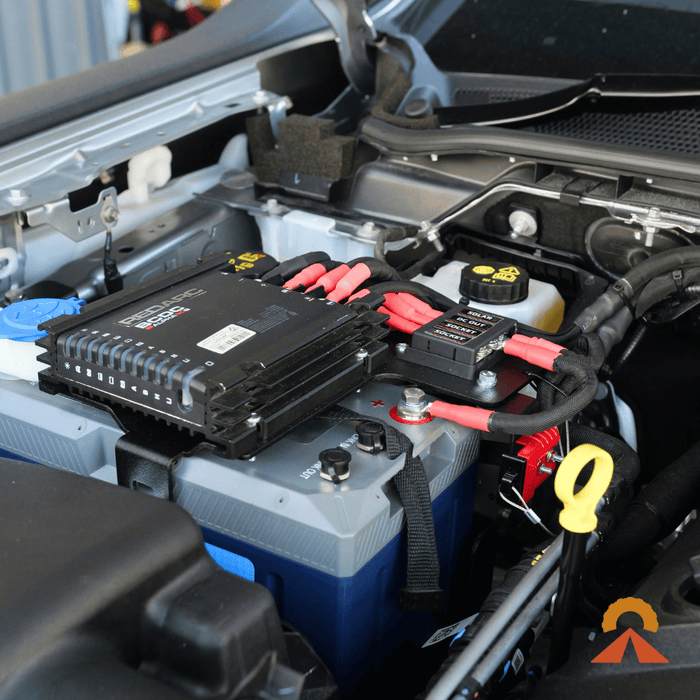

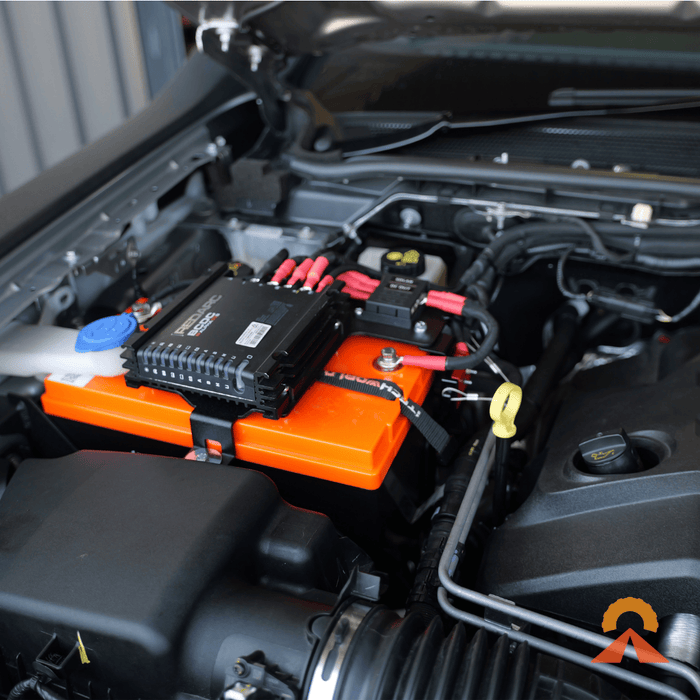

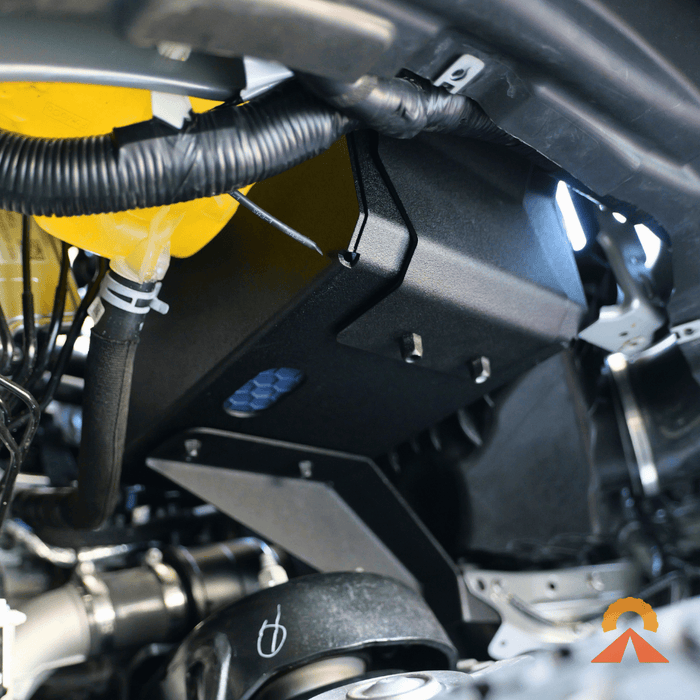

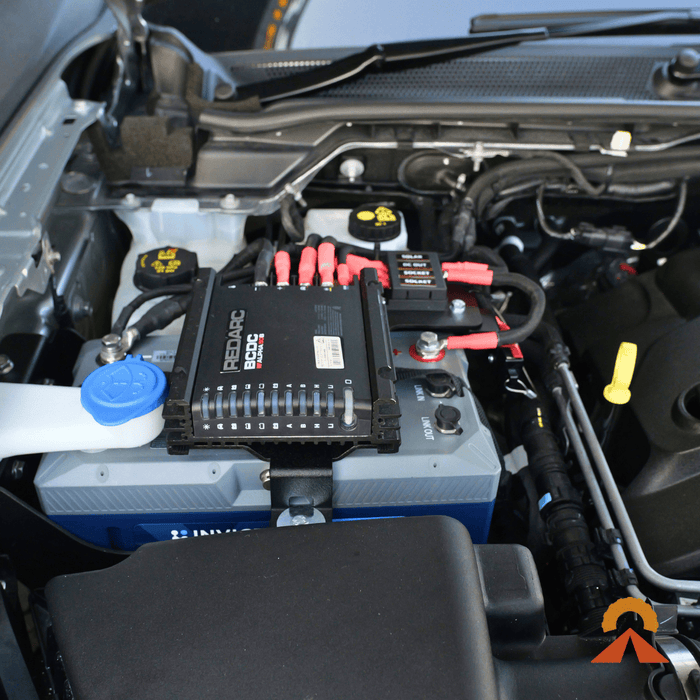

Every kit is built around a five-piece, laser-cut metal mounting system that bolts the entire tray assembly directly to the vehicle, not just to itself. A top strap carries the integrated REDARC Alpha charger mount, a bottom tray holds the battery, a long support arm ties into a dedicated bracket mounted to a factory vehicle panel, and a fourth bracket runs from the side of the engine bay back into the tray. The result is a battery and charger setup that stays solid over corrugations, sand, and years of touring, with no flex and no movement. Installation requires no cutting and no drilling: factory mounting holes are used throughout, fitted with nut sets rather than new holes drilled into the vehicle. Every kit ships fully pre-wired and plug-and-play, complete with a red Anderson solar input already run under the bonnet, and is backed by a full PDF installation guide and installation video.
The kit is fully configurable to suit how you use your vehicle. Choose between the REDARC Alpha 25A or Alpha 50A DC-DC charger, both with built-in flat battery reset (jump-start) functionality through the RedVision app, and run power to the rear via a raw wiring harness, a factory-style socket plate, or a 12V distribution box for canopy setups. Add an Invicta Xero 100Ah or 120Ah lithium battery at checkout, or select No Battery if you'd rather fit your own compatible lithium battery. Built for the Ford Ranger Next-Gen and Ranger Super Duty, and expected to fit the Ford Everest given Ford's shared platform from the dash forward. We haven't physically tested and confirmed Everest fitment ourselves yet, so while we're confident it will fit, we can't give it our full guarantee until we have.
Key Features
Five-Piece Bolted Support System – A fully engineered top strap, battery tray, long support arm, and dual mounting brackets tie the entire kit directly into the vehicle, not just to itself, for zero movement over the roughest tracks.
Fully Plug-and-Play – Every kit is completely pre-wired and pre-terminated, ready to connect. No cutting, no crimping, no wiring guesswork.
No Drilling Required – Uses existing factory mounting holes throughout, fitted with nut sets rather than new holes drilled into the vehicle.
Integrated Charger Mount – The top strap doubles as a dedicated mounting point for your REDARC Alpha charger, keeping the whole system compact under the bonnet.
REDARC Alpha Charging – Choose the Alpha 25A or Alpha 50A, both with Bluetooth monitoring, solar priority, and flat battery reset (jump-start) via the RedVision app.
Solar Ready – A red Anderson solar input is already run under the bonnet, so adding solar is plug-and-play.
Configurable Rear Power – Run power to the rear via raw wiring, a factory-style socket plate, or a 12V distribution box, whatever your tub, tray, or canopy setup needs.
Choose Your Battery – Add an Invicta Xero 100Ah or 120Ah lithium battery at checkout, or select No Battery to fit your own compatible lithium battery.
Durable Powder Coat Finish – Textured black powder coat across the mounting system for long-term protection against corrosion and wear.
Full Installation Support – A detailed PDF guide and complete installation video walk you through every step of the fit.
Charger Options
A waterproof, smart alternator-compatible 25A DC-DC charger with Bluetooth monitoring, solar charging and start battery support.
Provides faster charging capability while retaining the complete range of REDARC Alpha features.
Alpha Series Benefits
- Start Battery Support – Includes flat battery reset, start battery charging and maintenance functionality
- Bluetooth Monitoring – Monitor performance, adjust settings and receive updates through the REDARC RedVision app
- Smart Solar Charging – Built-in MPPT solar regulator with Green Power Priority™
- Adjustable Charging – Compatible with smart alternators and includes an adjustable input current limit
- Built for Harsh Conditions – IP67 and IP69K rated against dust and water ingress
- Australian Engineered – Backed by a two-year REDARC warranty and Australian support
Battery Options
No Battery Internal battery space allows you to supply and install your own battery. Only suits lithium batteries.
- Internal Battery Space – Sized to suit batteries up to approx. 308mm (L) x 168mm (W) x 220mm (H)
Invicta Xero 100Ah (SNLX12V100BT) – High-performance lithium battery with advanced BMS, Bluetooth monitoring and rugged IP67 design, backed by a 3-year under bonnet warranty.
Invicta Xero 120Ah (SNLX12V120BT) – Increased capacity lithium battery ideal for higher power demands, featuring advanced BMS, CAN bus communication and Bluetooth monitoring, also backed by a 3-year under bonnet warranty.
Invicta Xero Range Benefits:
- High performance BMS – Supports up to 500A pulse and 150A continuous discharge
- Long cycle life – 3000+ cycles at 100% depth of discharge
- CAN bus communication – Direct integration with system components for accurate data
- Bluetooth monitoring – Easy access via the Invicta app
- IP67 rated design – Water and dust resistant for harsh environments
- Rugged internal construction – Reinforced casing and vibration-resistant design
- Advanced safety features – Built-in passive and active protections

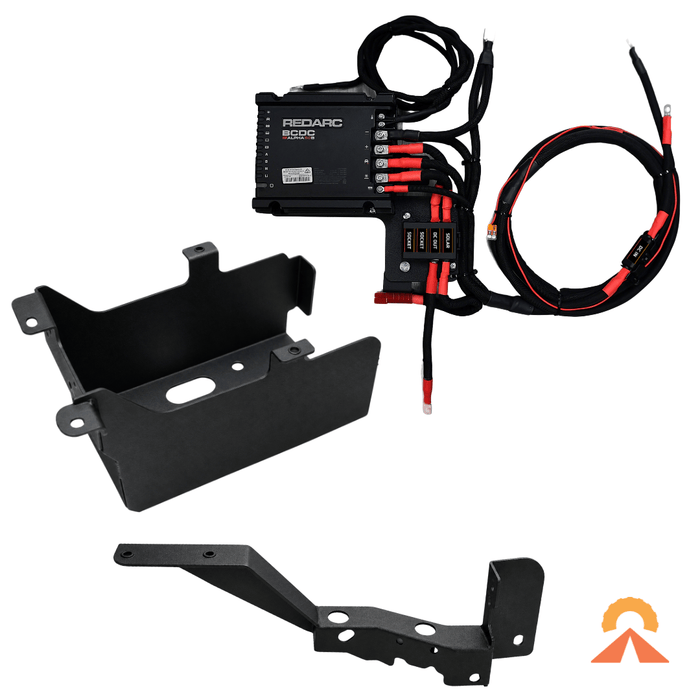

What's Included
- Top mounting strap with integrated charger mount

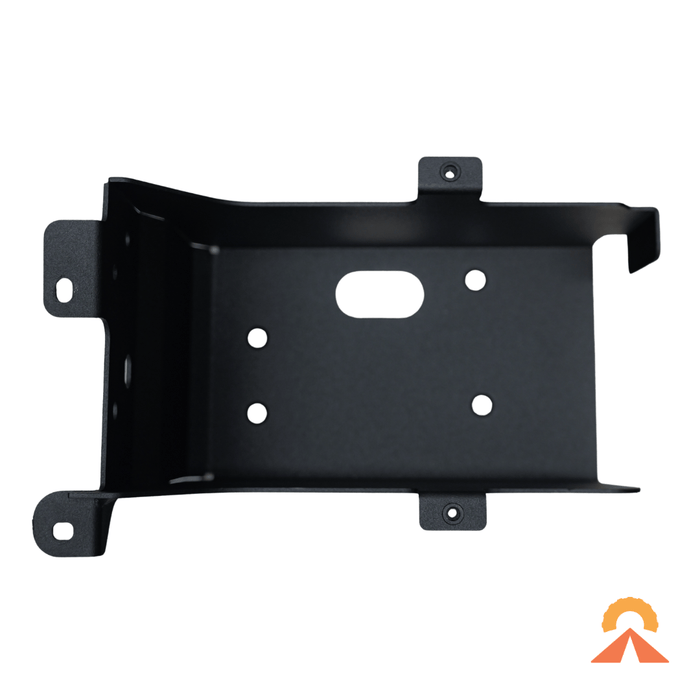

- Battery tray base
- Long support arm
- Panel mounting bracket
- Side support bracket
- REDARC Alpha charger (selected option)
- Battery (selected option, if chosen)
- Pre-wired, pre-terminated charge harness
- Red Anderson solar input
- Mounting hardware, including nut sets for factory hole fitment
- Socket wiring and/or universal socket box (per selected option)
- Detailed PDF installation guide
- Installation video access
Socket Options
Choose the setup that suits your build and how hands-on you want to be:
No Socket Wiring
- No rear socket wiring is included.

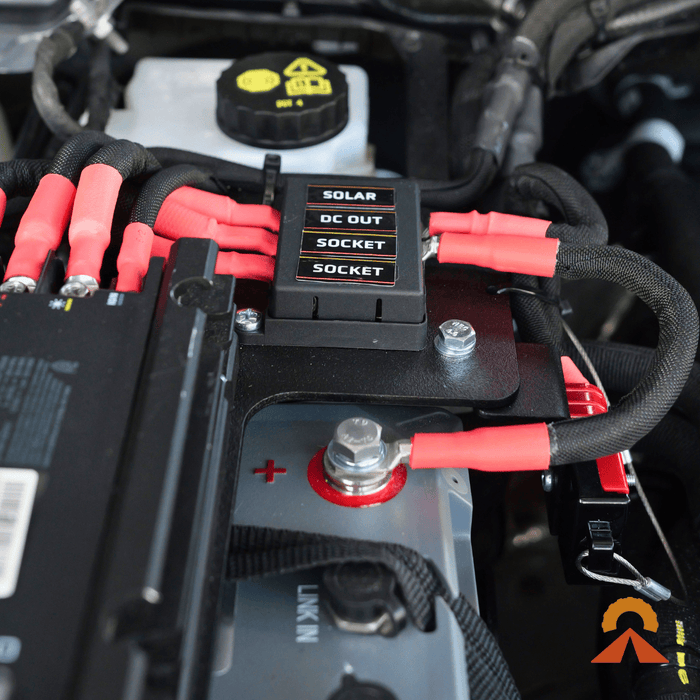

- If you choose to add your own, you can connect directly to the MIDI fuses located on top of the dual battery kit, giving you full flexibility to wire your setup exactly how you want.
Socket Wiring Only
- Includes 3.5 metres of 8 B&S cable with durable self-winding sheathing.
- Pre-terminated to connect directly to the MIDI fuses under the bonnet, and finished with two Anderson plugs at the rear.
- Perfect if you want flexible output options: flush mount, plug into a socket box, or simply run cabling to the back.
Socket Wiring + 12V Distribution Box Everything included in the Socket Wiring option, plus our 12V Distribution Box for a complete rear power solution. The distribution box features:
- 2 x Grey Anderson outputs
- 2 x 12V cigarette sockets
- 1 x Engle fridge plug
- 1 x Dual USB (A/C)
Designed to be mounted in your canopy, tub, or tray for a clean, ready-to-use setup.
Socket Wiring + 12V Socket Plate Everything included in the Socket Wiring option, plus our 12V Socket Plate for vehicles fitted with the factory plastic socket plate. Replaces the factory plate with ours, featuring a roller-shutter retaining switch and three outlets:
- 2 x Grey Anderson outputs
- 1 x 12V cigarette sockets
- 1 x Engle fridge plug
- 1 x Dual USB (A/C)
Specifications
- Vehicle Compatibility – Ford Ranger Next-Gen (2022–Present) & Ranger Super Duty (2026–Present). Also expected to fit Ford Everest (shared platform from the dash forward) – fitment not yet physically confirmed by us.
- Battery Location – Under Bonnet
- Charger Options – REDARC Alpha 25A or Alpha 50A
- Battery Options – No Battery, Invicta Xero 100Ah (SNLX12V100BT, 12.5kg), or Invicta Xero 120Ah (SNLX12V120BT, 14.0kg) – both 308mm (L) x 168mm (W) x 220mm (H), M8 terminals
- Tray Construction – 5-piece laser-cut metal mounting system, bolted directly to the vehicle
- Tray Finish – Textured black powder coat (one structural bracket supplied raw)
- Solar Input – 1 x Red Anderson Plug
- Socket Wiring (if selected) – 3.5m of 8B&S twin-core cable, self-winding sheathing, terminated with Anderson plugs at the rear
- Installation – Vehicle-specific bolt-in design using factory mounting holes, no drilling required
Warranty
2 Year Accelerate Off-Grid Touring Warranty on Metalwork & Wiring. Both the REDARC Alpha charger and the Invicta Xero battery range (if selected) are backed by a 3-Year Under Bonnet Warranty.
