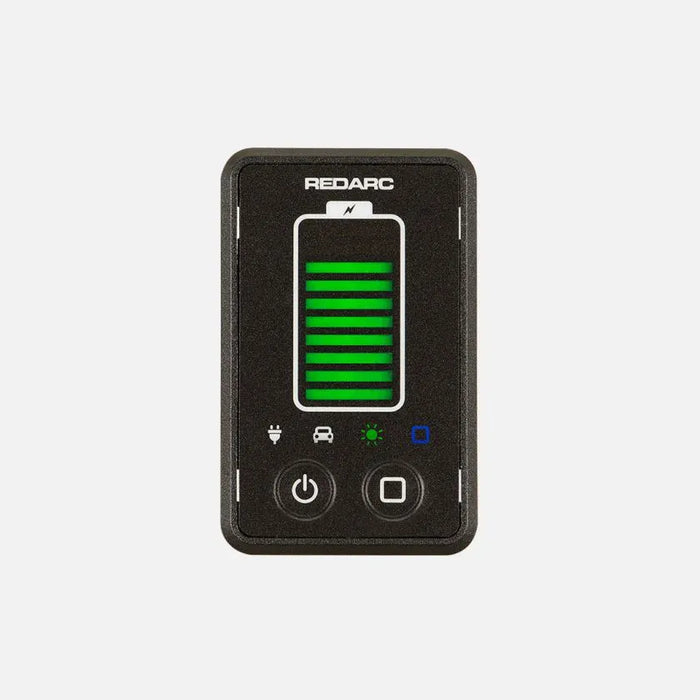

REDARC RedVision Essentials Display

Keep track of your battery’s remaining charge and active charging sources at a glance with the compact, easy-to-read REDARC RedVision Essentials Display.

Working alongside the REDARC Smart Battery Monitor, this display acts like a fuel gauge for your battery, showing its State of Charge in clear 10-bar increments. The bright, uncluttered screen makes it easy to check your power without reaching for your phone or interpreting detailed electrical readings.

Designed for new installations and existing compatible REDARC systems, the display connects via R-Bus and installs using a 51mm mounting hole and two supplied screws. You can adjust screen brightness, enable Bluetooth pairing and initiate Start Battery Recovery when connected to compatible equipment.

Key Features

Battery Status at a Glance – Displays accurate battery State of Charge in clear 10-bar increments.

Simple, Easy-to-Read Screen – Bright, uncluttered layout shows how much battery charge remains without needing your phone.

Charging Source Visibility – Shows connected and active charging sources, including vehicle, solar and AC, when available within your system.

Easy Installation – Mounts using a 51mm hole saw and two supplied screws, with an R-Bus connection for system integration.

Convenient Display Controls – Adjust brightness and enable Bluetooth pairing directly from the display.

Start Battery Recovery – Initiate recovery at the push of a button when paired with compatible REDARC equipment.

Australian Made – Manufactured in Australia and tested for demanding touring conditions.

System Compatibility

The RedVision Essentials Display must be used with a REDARC Smart Battery Monitor (BSEN500). It can be installed as a single display or added to an existing compatible system that already includes the BSEN500.

Start Battery Recovery requires compatible REDARC equipment. Available charging source information depends on the products connected to your system.

Specifications

• Product: REDARC RedVision Essentials Display
• Model: DISP4000
• Required Monitor: REDARC Smart Battery Monitor (BSEN500)
• Battery Charge Display: State of Charge shown in 10-bar increments
• Charging Source Indicators: Vehicle, solar and AC, depending on connected equipment
• System Connection: REDARC R-Bus
• Mounting Hole: 51mm
• Mounting Hardware: Two supplied screws
• Display Controls: Brightness adjustment, Bluetooth pairing and Start Battery Recovery on compatible systems
• Country of Manufacture: Australia
