Accelerate Off-Grid Touring Trailer Bracket Trailer Bracket - Prado 250 Series

Trailer Bracket - Prado 250 Series

SKU AAE250TB-KIT

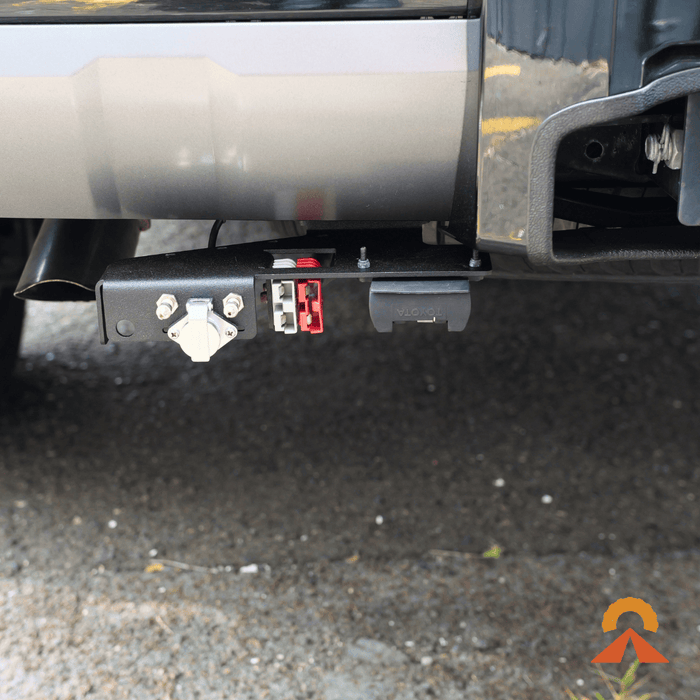

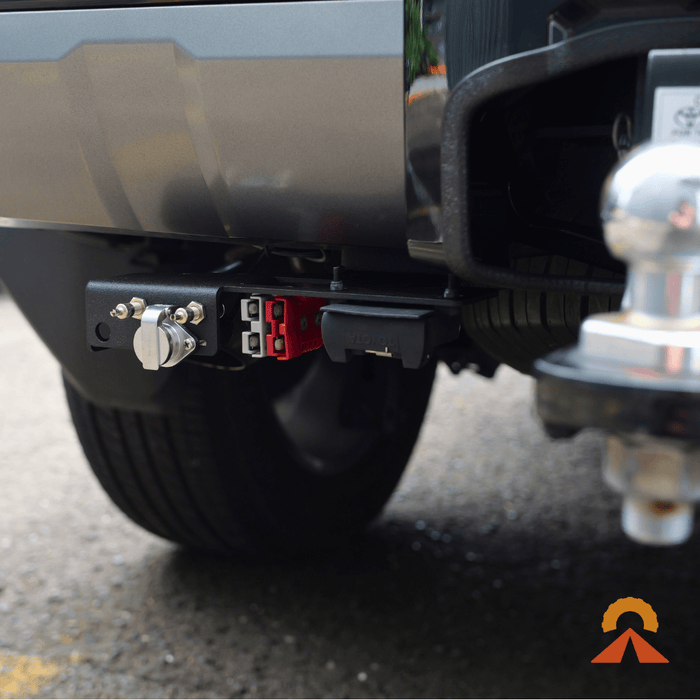

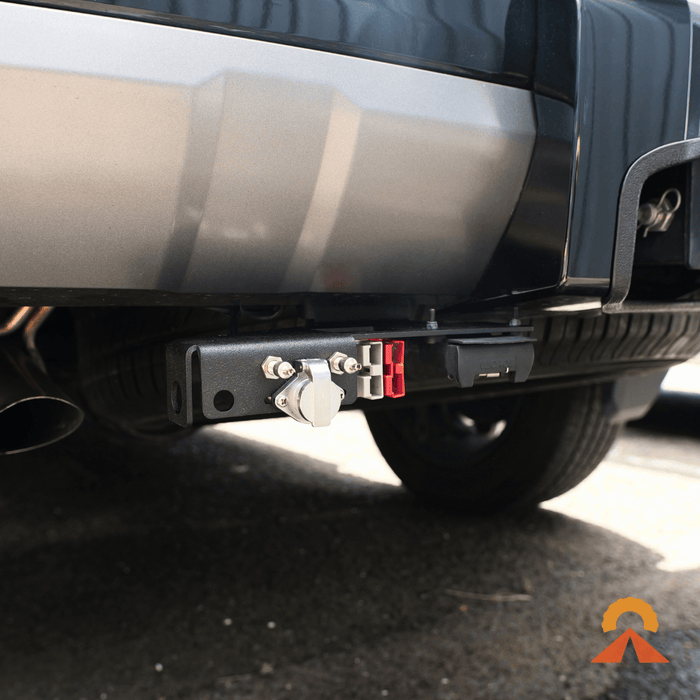

A clean, factory-style solution for mounting all your trailer connections and an ARB air chuck to your Toyota LandCruiser Prado 250 Series tow bar.
$49.98 - $49.98
$49.98
$159.00
$159.00 - $159.00
$159.00

Designed for:

Compatible with Toyota LandCruiser Prado 250 Series (All Models).

Description

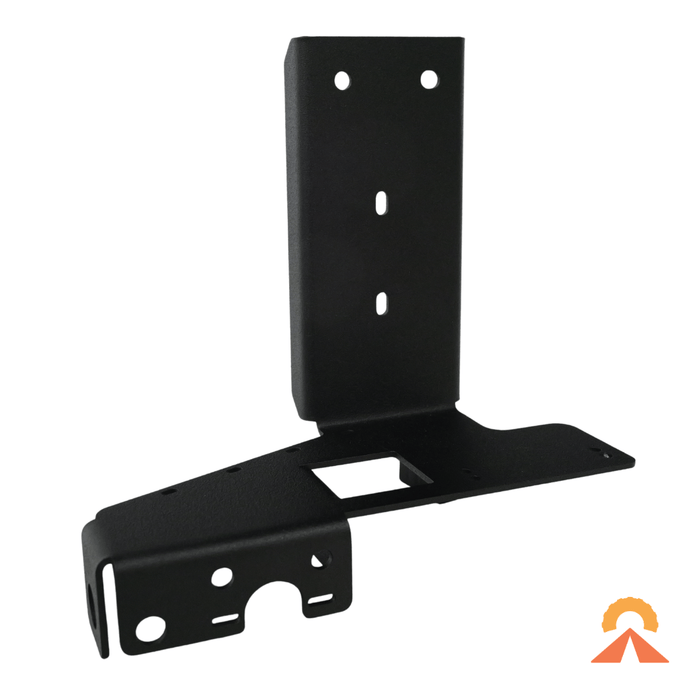

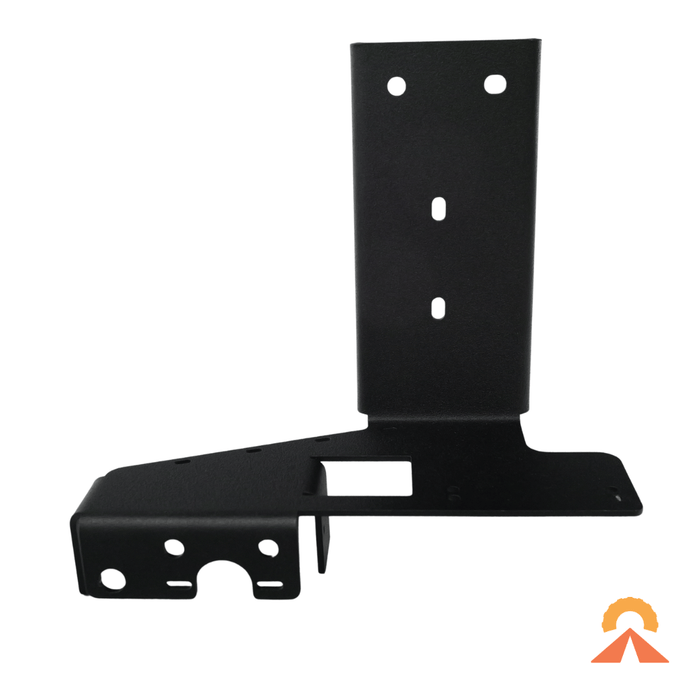

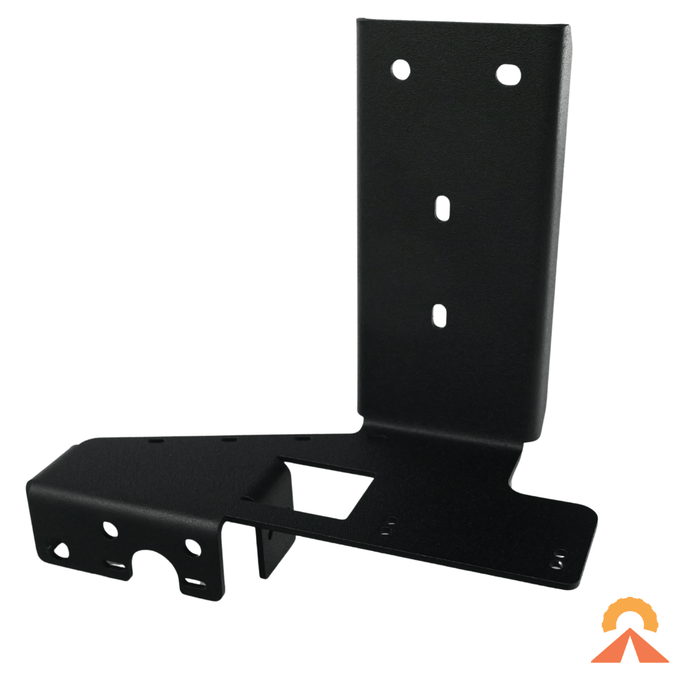

Every essential trailer connection your 250 Series Prado needs, mounted in one clean location on the factory tow bar. The Toyota LandCruiser Prado 250 Series Trailer Mounting Bracket brings the same purpose-built design as our 300 Series bracket, re-engineered specifically for the 250 Series Prado's factory mounting points. It tucks up neatly on the left-hand side of the tow bar for an OEM-style finish, with no cutting, drilling or improvising required.

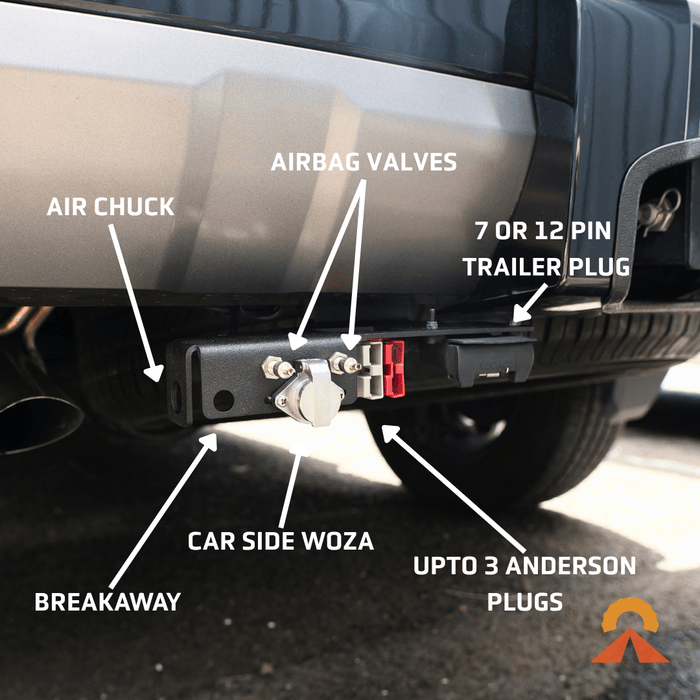

Built from 316L stainless steel and finished in a textured black powder coat, it's designed to handle the corrosion, vibration and load that come with real touring, not just weekend runs. Provisions are built in for your breakaway switch, WOZA connection (Safety Dave, Sphere, Polaris), Airbag Man inflation valve, triple stack Anderson plugs and your 7/12-pin trailer plug, so every connection has a home instead of hanging loose under the bar.

This bracket also includes a fold-down tab on the left-hand side, purpose-built for mounting an ARB air chuck alongside your other connections. It's part of the same complete rear setup, giving you air access for topping up tyres or running air tools straight off the tow bar.

Key Features

Vehicle-Specific Fitment – Designed to suit all Toyota LandCruiser Prado 250 Series models using factory mounting points on the tow bar

Complete Rear Setup Solution – Mounts all essential towing components including trailer plugs, Anderson plugs, and accessories in one location

Folded-Down ARB Air Chuck Tab – Folded-down mounting tab on the left-hand side, purpose-built for fitting an ARB air chuck

316L Stainless Steel Construction – Marine-grade material provides exceptional strength and long-term corrosion resistance

Textured Black Powder-Coated Finish – Durable coating for added protection and a clean, factory-style appearance

Multi-Accessory Compatibility – Includes provisions for breakaway unit, WOZA connection (Safety Dave, Sphere, Polaris & Aopulo Wozas), Airbag Man inflation valves, triple stack Anderson plugs, and 7/12-pin trailer socket

What's Included

Toyota LandCruiser Prado 250 Series Trailer Mounting Bracket (Bracket only)

Note: No plugs, wiring or air chuck are included.

Specifications

  • Material – 316L Stainless Steel
  • Finish – Textured Black Powder Coat
  • Mounting Location – Left-hand side of tow bar
  • Mounting Method – Factory mounting points
  • Compatibility – Toyota LandCruiser Prado 250 Series (All Models)
  • Accessory Provisions – Breakaway switch, Woza connection, Airbag Man valves, dual Anderson plugs, 7/12-pin trailer plug, fold-down ARB air chuck mounting tab
  • Manufacturing – Laser cut and powder-coated on the Sunshine Coast
  • Design – In-house by Accelerate Off-Grid Touring
  • Warranty – 2 Years
Shipping & Returns

Shipping Policy

All smaller products have a 1 business day fulfilment time. This means your order will be picked, assembled (if required), and prepared for dispatch within one business day of purchase.

Once dispatched, you will receive a tracking number via email so you can monitor the progress of your delivery.

Estimated delivery timeframes within Australia:

  • Standard Shipping: 5 – 7 business days
  • Express Shipping: 3 – 5 business days

Please note:

  • Delivery timeframes are estimates and may vary depending on your location and the shipping carrier.
  • Delivery timeframes do not include the 1 business day fulfilment time.
  • Tracking updates may take time to appear after dispatch while the carrier processes the shipment.
  • Once your order has been dispatched, it is in the hands of the shipping carrier. For delivery updates, delays, or enquiries, we recommend contacting the carrier directly using your tracking number.

We take care to ensure your order is securely packaged and dispatched as quickly as possible.

Returns Policy – 30 Days

We offer a 30-day return period from the date your order is delivered.

To be eligible for a return, the product must be:

  • In as-new, resellable condition
  • Unused and uninstalled
  • In the original packaging, including all supplied components and hardware
  • Free from damage, modification, or signs of installation

Returns that do not meet these conditions may be refused.

The customer is responsible for all return shipping costs.

Once the returned product has been received and inspected, and meets our return criteria, a refund will be processed to the original payment method.

Original shipping costs are non-refundable.

Exchanges

If you wish to exchange a product for a different item, the following applies:

  • The original product must be returned in as-new, resellable condition, in original packaging
  • The customer is responsible for the shipping cost to return the original product
  • The customer is also responsible for the shipping cost of the replacement product being sent out

Once the original item is received and inspected, we will arrange dispatch of the replacement product.

Important Notes

  • We recommend using a tracked shipping service when returning products, as we cannot be responsible for items lost in transit.
  • Accelerate Off-Grid Touring reserves the right to inspect and verify the condition of all returned items before approving refunds or exchanges.
  • Products that have been installed, modified, damaged, or are missing components may not be eligible for return.
Installation

Doing It Yourself?

If you run into any issues during your install or need advice, our team is here to help.

Simply click below to access our Tech Support Form and we’ll get back to you as soon as possible.

→ Contact Tech Support

Want It Installed For You?

If you’d prefer professional installation, we’ve got you covered.

Simply purchase this product and get in touch with the team at Accelerate Off-Grid Touring to book your install.

Accelerate Off-Grid Touring

📍 17 Trinder Avenue, Maroochydore QLD
📞 07 5479 6652
🌐 accelerateoffgrid.com.au

→ Book Your Installation

FAQs

Does this bracket include the ARB air chuck?

No. The bracket includes a fold-down mounting tab for an ARB air chuck, but the air chuck itself is sold separately.

Does this bracket include Anderson plugs, trailer sockets or wiring?

No. This is bracket only — it gives you dedicated mounting points for your breakaway switch, WOZA connection, Airbag Man valve, Anderson plugs and trailer plug, but plugs and wiring are not included.

Will this fit my Prado 250 Series with a non-genuine tow bar?

This bracket is designed around the factory tow bar mounting points on the Toyota LandCruiser Prado 250 Series. Fitment with aftermarket tow bars may vary, so check with us before ordering if you've had a non-genuine tow bar fitted.

Can I fit this alongside my existing Anderson plugs and trailer socket?

Yes. The bracket brings all of these connections together in one location, including triple stack Anderson plugs and a 7/12-pin trailer socket.
