Ultimate Toyota LandCruiser 300 Series Touring Build

LC300 Series Toyota LandCruiser

This LC300 Series Toyota LandCruiser came to us for the ultimate off-grid touring transformation. The brief: create a self-sufficient, capable, and comfortable setup for tackling remote tracks and long-distance travel. Here’s everything we fitted to make it happen.

Towing Setup

• REDARC TowPro Elite V3 brake controller – dial mounted in top right blank with Accelerate blank
• 6B&S isolated Anderson plug to rear
• 6mm red Anderson plug for ESC constant power
• All mounted on Advanced ICE bracket

GME UHF Installation

• GME XRS-370C UHF radio with passthrough on passenger side blank
• Antenna on passenger side of bullbar
• Handpiece mounted using bracket in trim

Spotlights

• STEDI Type-X EVO 8.5" Spot Beam (driver side) & Flood Beam (passenger side)
• STEDI Driving Light Wiring Harness 60A dual connector
• STEDI Anti-Theft Kit for Type-X EVO
• Narva OE-style push-button switch (“DL”) in driver-side blank

Dual Battery System

• Accelerate custom under-bonnet lithium kit with custom brackets
• Invicta 120Ah lithium battery (3-year warranty)
• REDARC 25A BCDC charger
• Rear cup holder accessory panel (1x Cig, 1x Twin USB A/C, 2x Grey Anderson outputs)
• Red Anderson plug for solar input under bonnet
• Designated fridge circuit
• Victron Smart Battery Monitor (Black) with waterproofed shunt

Rear Drawer System

• RV Storage Solutions Easy Access Combo 1 & Wing Kit (black trim)
• Large low platform to passenger side, single drawer (L1000mm x W450mm x H275mm)
• RV Storage Solutions Travel Slide Drawer with Drawer Lid
• Infill panel for fridge slide cavity to create flat surface
• Passenger wing: USB A/C, Cig socket
• Driver wing: ARB compressor control & outlet

Compressor

• ARB Onboard Twin Compressor System with remote chuck & switch
• 6m ARB air hose
• ARB digital inflator

Tailgate Light

• JBA 300 Series white/orange LED tailgate light with two-way switch

Camera

• Customer-supplied screen & power loom
• Safety Dave 7.5m cable and 7-pin Woza car-side socket

Bullbar & Winch

• ARB Summit Winch Bull Bar MKII (matte black) with ARB LED fog lights, DRLs, indicators & clearance lights
• ARB winch install kit & flip-up number plate bracket
• Carbon 12K electric winch with black rope & hook

Side Protection & Steps

• ARB side rails & steps (matte black)

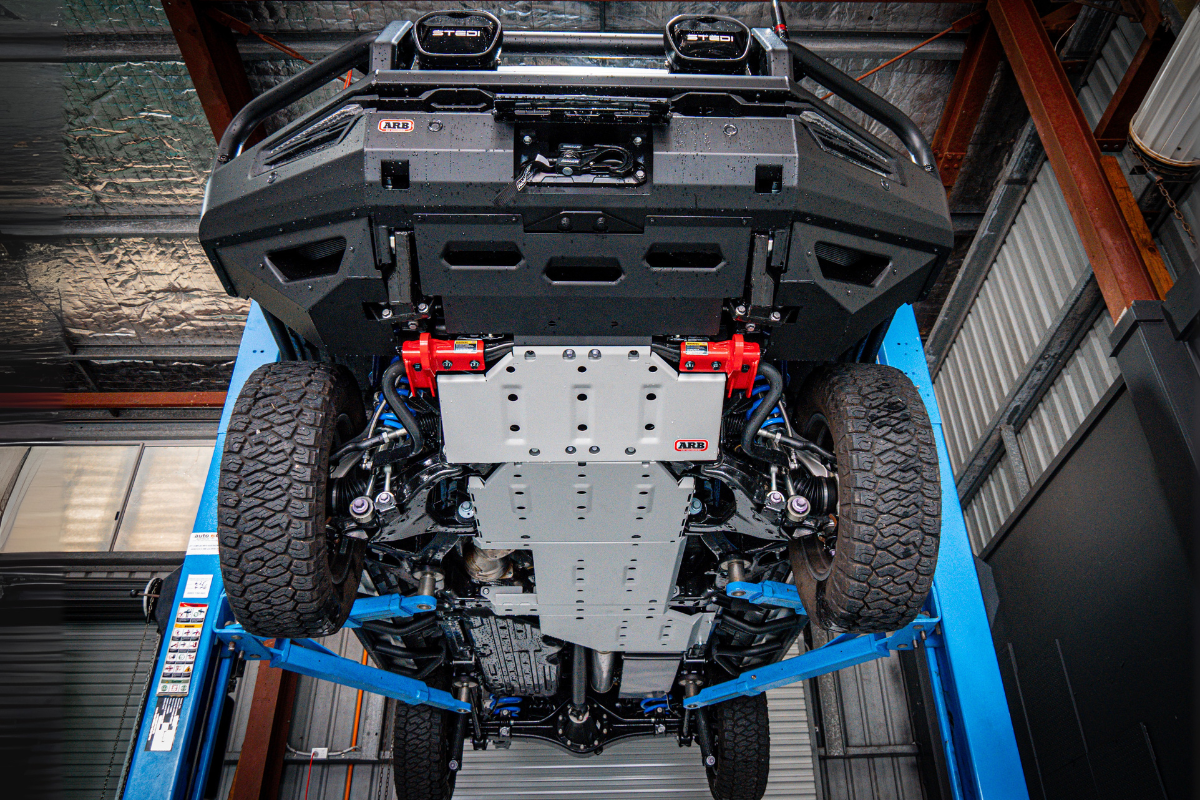

Underbody Protection

• ARB 4-panel underbody protection kit

Recovery Points

• ARB forged rated recovery points (8,000kg)

Snorkel

• Safari Snorkel for LC300 Series

Roof Rack

• ARB BASE Rack 1545x1285 with mount kit & wind deflector

Long Range Fuel Tank

• Brown Davis 87L replacement tank

Other

• Customer-supplied pre-filter & fuel filter guard
• Towbar cut-out performed (D-shackle variant)

This LC300 is now ready to travel far, tow heavy, and stay off-grid for longer.
